10m LiDAR Range Sensor, UART&I2C switchable, supports Ardupilot/PX4/INAV

Description

MT-01P is an  LiDAR Range Sensor developed by MicoAir Technology. It uses UART&I2C  to output data and is compatible with mainstream open source flight controllers such as Ardupilot, PX4 and INAV. It can be used directly after simple configuration without complicated development process.

MT-01P features a high-performance Laser TOF sensor, which can be used normally in outdoor sunlight environments.

Specification

• Product weight: 8g
• Product size: 33.2 * 20.8 * 16.8mm
• Output mode: UART/I2C
• Output frequency: 100Hz-5Hz Adjustable （default 50Hz)
• TOF Range: 0.02-10m（@90% Reflectivity）
• Anging dead zone: 2cm
• Range accuracy: 4cm (0.02-2m@90% Reflectivity）
•                            2%(>2m @90% Reflectivity）
• Wavelength: 808nm
• Light source: Laser
• Resistance to ambient light: 70K Lux illumination
• Distance FOV: 1.5 °
• Power consumption: 500mW
• Operating voltage: 5.0V
• Operating temperature: - 10 ° C-60 °C

USER MANUAL & Configurator

MT-01P

(Download MicoAssistant from here)

GitHub - micoair/MTF-01_USER_MANUAL

 or

MicoAssistant_v0.9.15

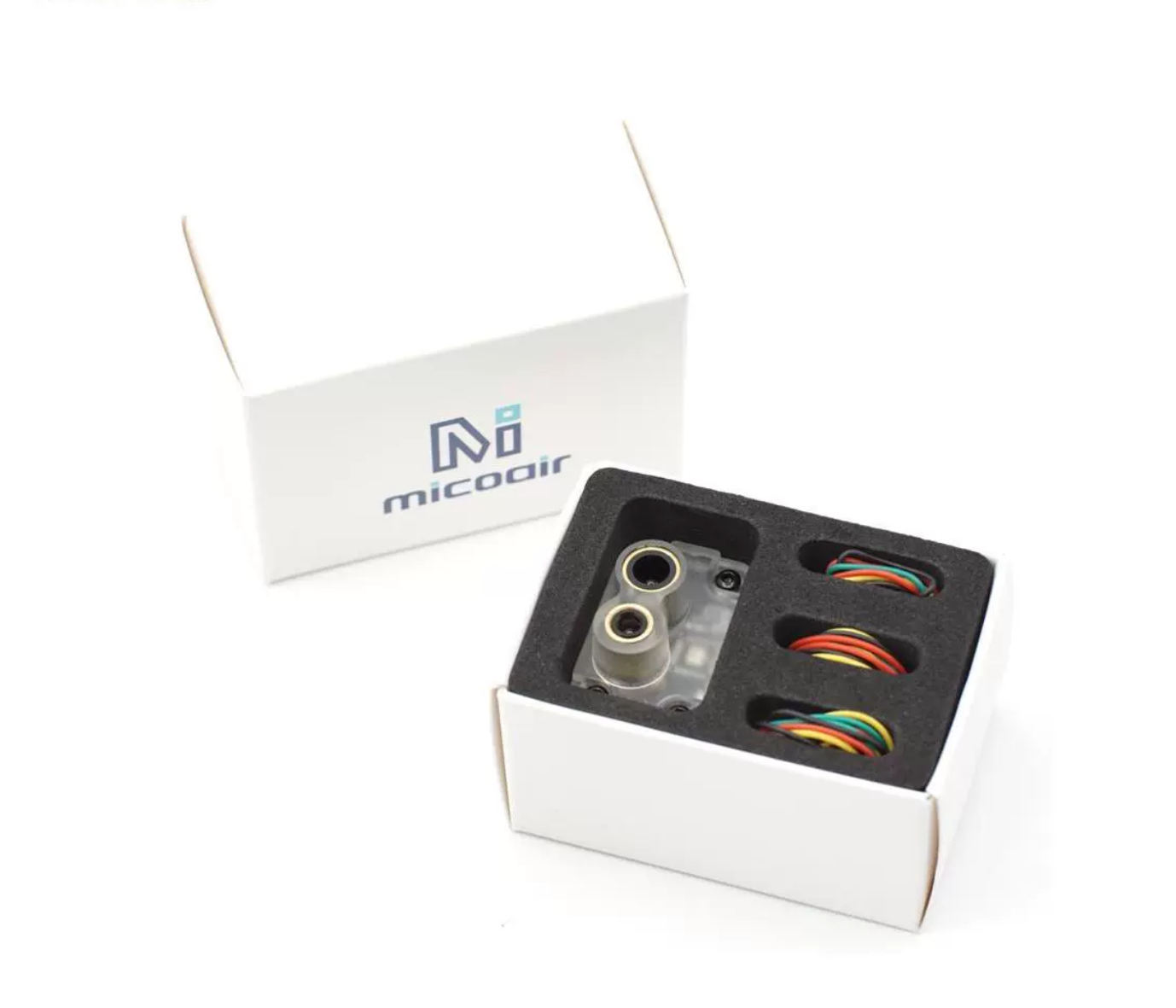

PACKAGE LIST

• MT-01P module *1 (Default Mavlink protocol）
• 15cm SH1.0 4PIN-SH1.0 4PIN cable * 1 (for Micoair 405/743 Flight controller)
• 20cm SH1.0-MX1.25-6P cable * 1 (for pixhawk2.4.8）
• 20cm SH1.0-GH1.25-6P cable * 1 (for pixhawk4/5/6)
