M10G-5883 module uses multi-constellation GNSS chip powered by u-blox M10050.
M10G-5883 supports concurrent reception of GNSS (GPS, GLONASS, Galileo, and BeiDou). The high number of visible satellites enables the receiver to select the best signals. This maximizes the position availability, in particular under challenging conditions such as in deep urban canyons. u-blox Super-S (Super-Signal) technology offers great RF sensitivity and can improve the dynamic position accuracy in non-line-of-sight scenarios.

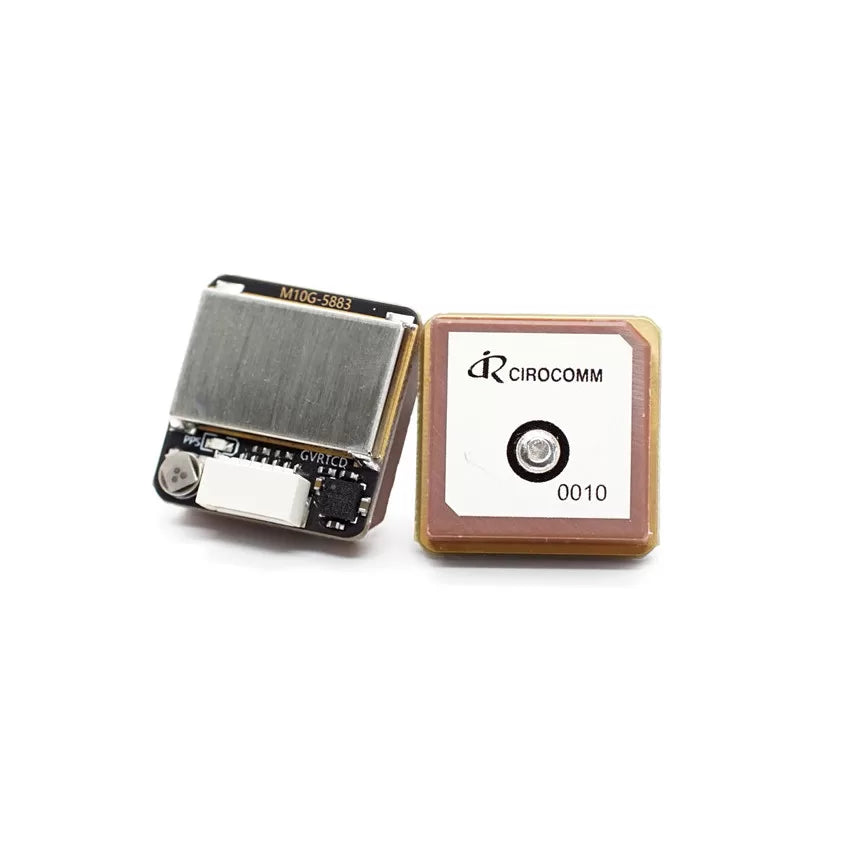

The high-gain 18 x 18 x 4 mm antenna from CIROCOMM provides the best balance between performance and small size. The omnidirectional antenna radiation pattern increases flexibility for device installation.

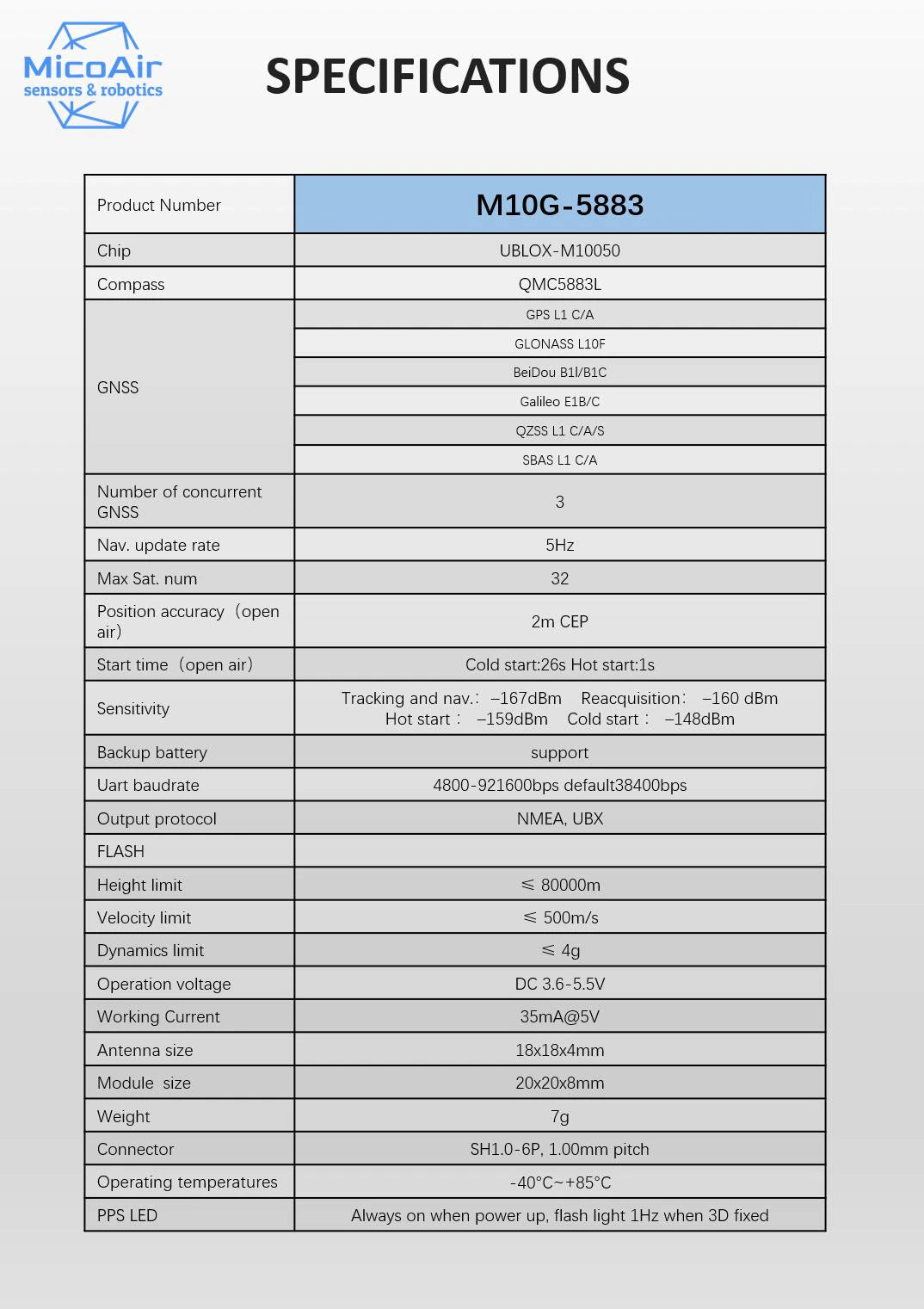

GNSS u-blox M10050 (GPS, GLONASS, Galileo and BeiDou)
Magnetic Compass QMC5883L
Patch antenna 18*18*4mm
Input voltage range: 4~6V (5V pad/pin)
Power consumption: 30mA
UART baudrate: 115200 default
Operating Temperatures: -20~80 °C
UART(TX, RX) interface for M10050
I2C(DA, CL) interface for Compass QMC5883L
SH-1.0 6P connector ,1.00mm pitch
GNSS PPS LED, Green. (Solid ON after powering on, blinking(1Hz) when GNSS get 3D fix)
Protocol: UBX(u-blox) 10Hz@GPS+GAL+BDS or NMEA 1Hz
20mm*20mm*8mm
7g
