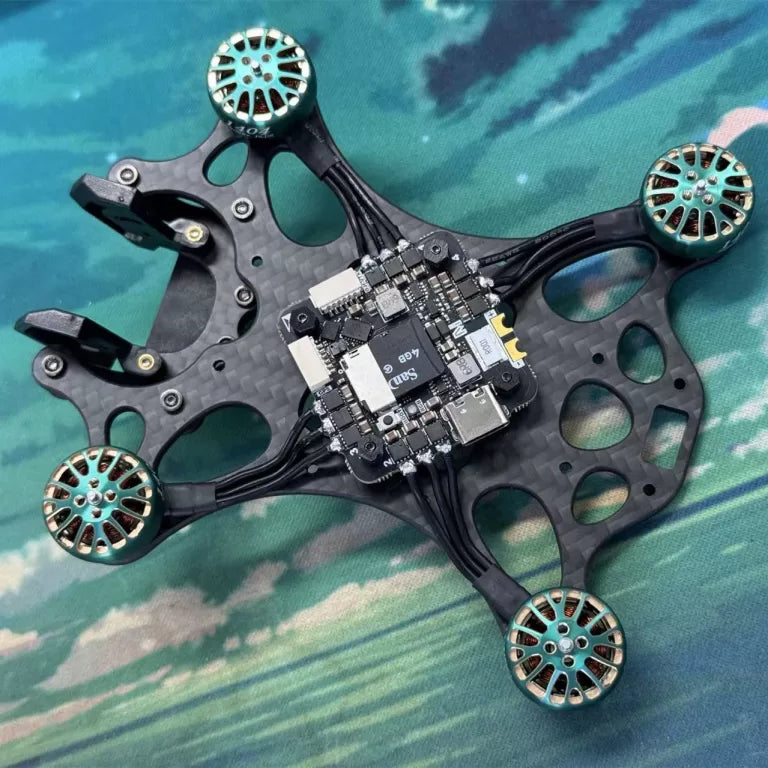

MicoAir H743 AIO 35A AM32 25.5×25.5 3-6S Flight Controller & ESC

Name: MicoAir H743 AIO 35A AM32 25.5×25.5 3-6S Flight Controller & ESC
Brand: MicoAir
Price: 63.99 USD
Availability: InStock

$63.99 USD

~~$68.00 USD~~ $63.99 USD

Sale Sold out

Shipping calculated at checkout.

📦 Ships from our US or Canada warehouse — US delivery in 2–7 business days, duties & taxes prepaid · 🇨🇦 Canada: free shipping · 30-day returns

Firmware Ardupilot

Product variants

Quantity

📘 Documentation & Guides

H743 AIO — Full User Manual — specs, UART mapping, outputs, battery monitoring, and what an AIO trades away
AIO or a Stack? — the layout decision: compass, OSD, BEC current, heat and repair cost
ArduPilot Basic Configuration — frame type, DShot, motor order, calibration and first arming
Configure ESC Parameters — updating and configuring the on-board AM32 ESC through the flight controller
External Compass Orientation — required reading for an AIO, which has no internal compass to auto-detect against

Setting it up with an AI assistant? Read our AI setup guide first. It shows you how to point ChatGPT, Claude or Gemini at the official manual for this product, so the answers come from the real pinout and parameter names instead of guesses.

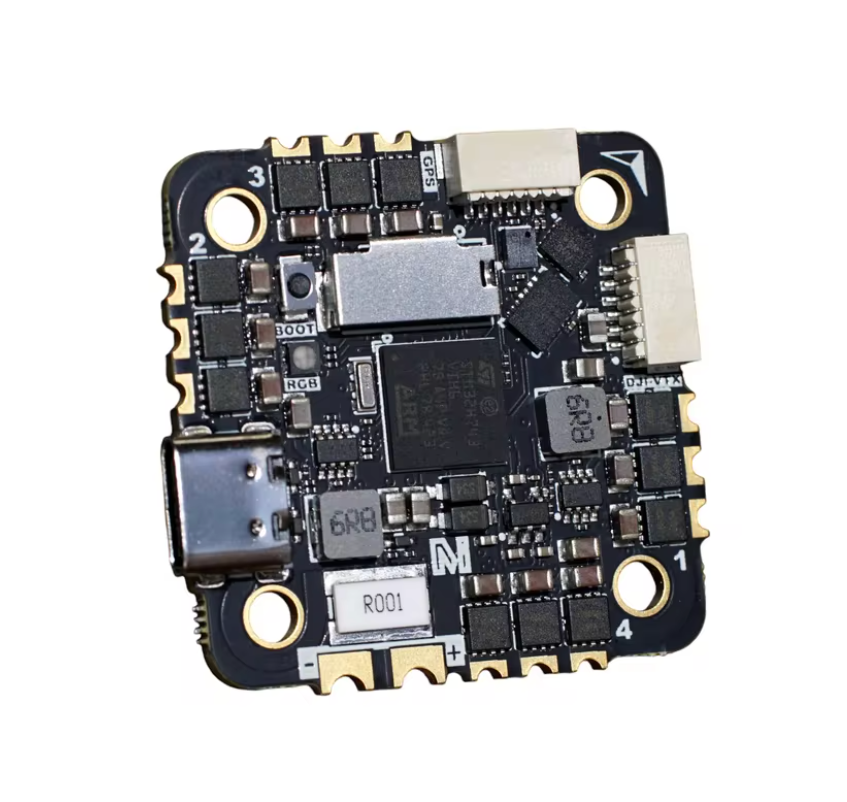

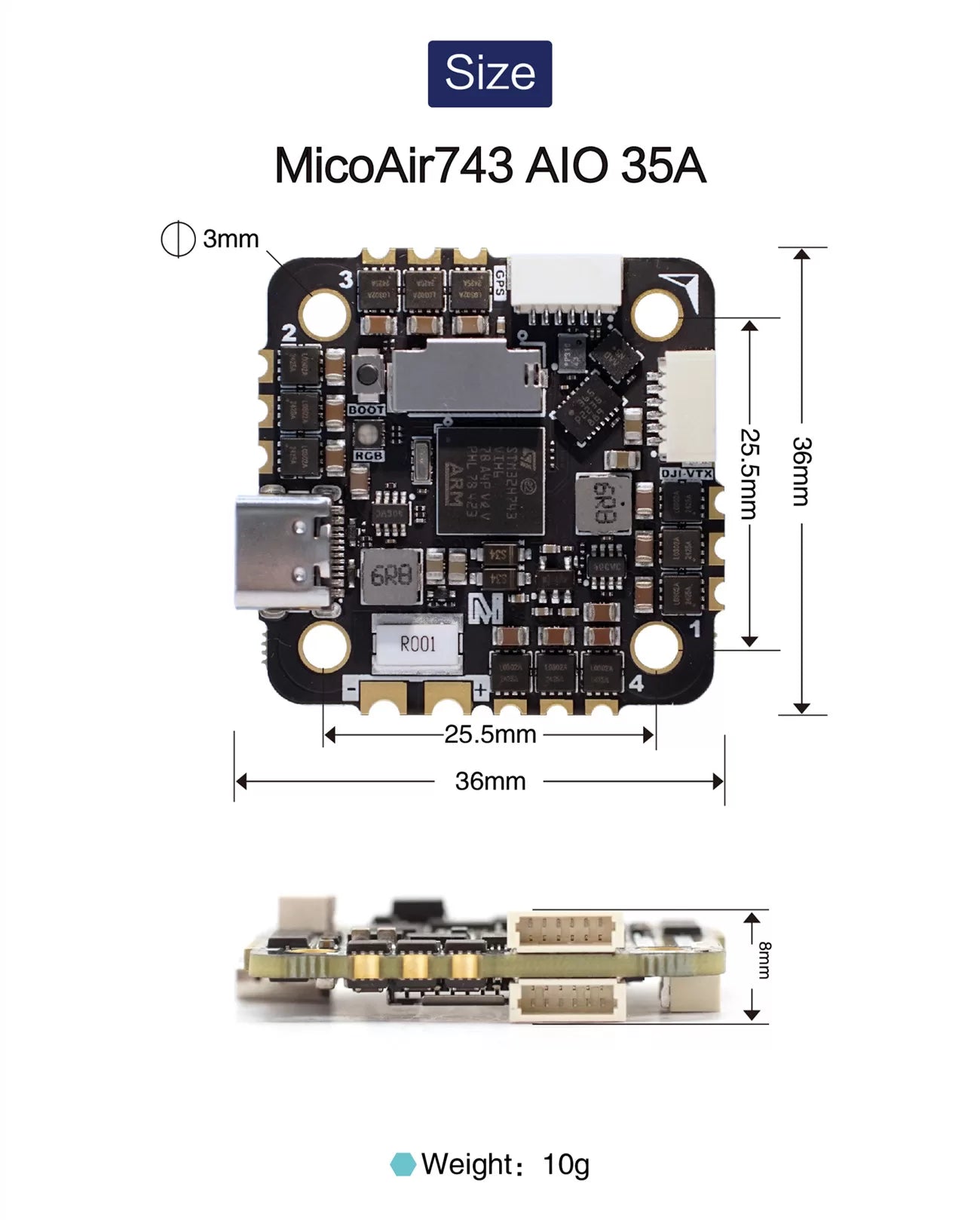

Flight Controller

MCU: STM32H743VIH6, 480MHz, 2MB Flash
IMU: BMI088+BMI270
Baro: DPS310
TF Card Slot
7x UART
8x PWM
1x I2C
1x SWD
2x ADC (VBAT, Current)
1x LED Strip
1x Beeper
USB Type-C
BEC 5V 2A output (for controller, receiver, GPS, optical flow or other devices)
BEC 12V 2A output (for DJI O3/Vista)

ESC

Firmware: AM32_MICOAIR_743_AIO_F421_2.17
PWM Freq: 48KHz
ESC Protocol: PWM/DShot300/DShot600 (support BDShot)
Continuous Current: 35A * 4
Voltage Support: 3-6S (approx. 10V-27V)

Tutorial: How to configure and update the on-board AM32 ESC

Battery Monitoring

ArduPilot / PX4: voltage factor 21.12, current factor 14.14 (BATT_VOLT_MULT / BATT_AMP_PERVLT on ArduPilot)
Betaflight / INAV: voltage scale 211, current scale 707

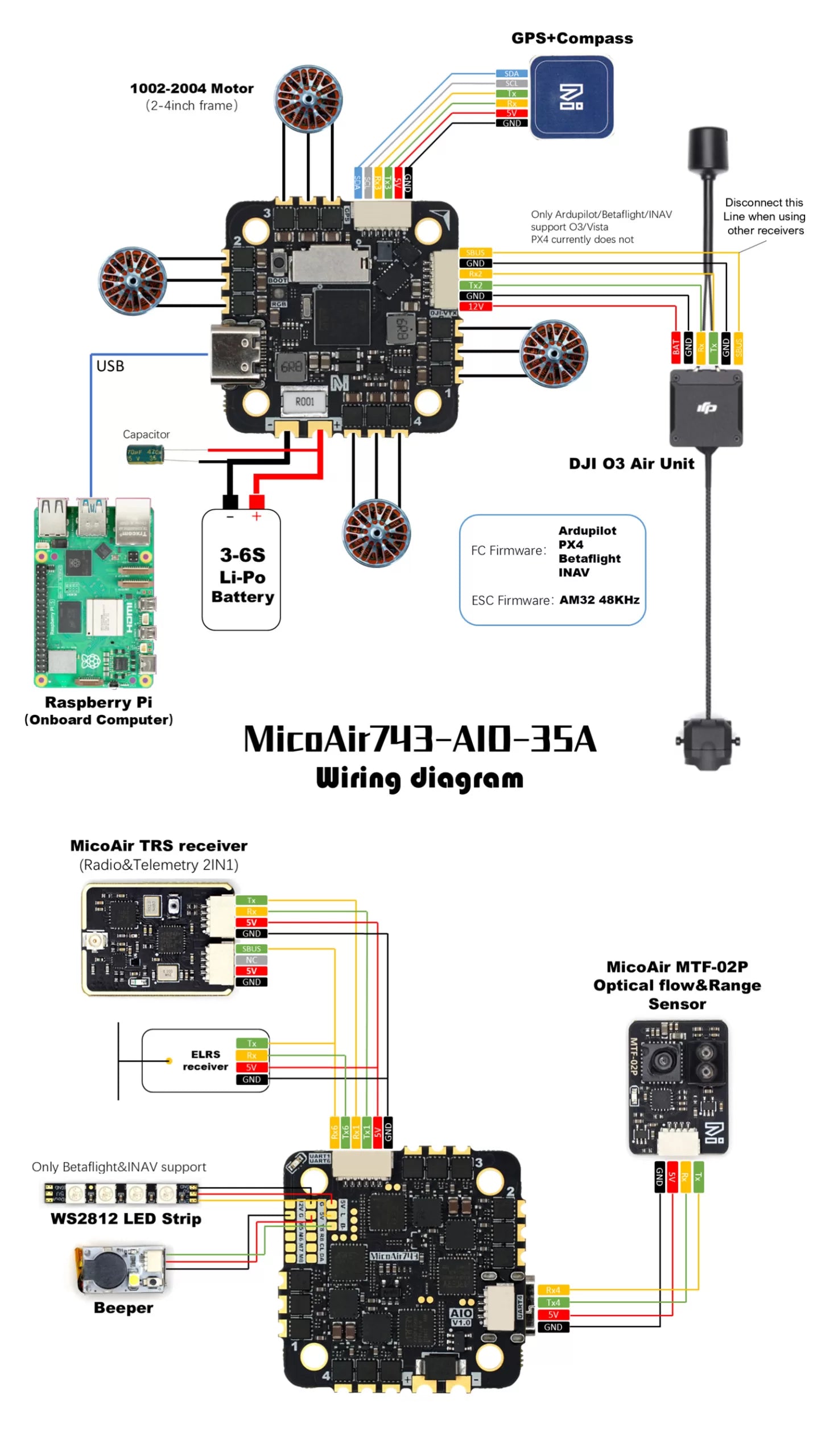

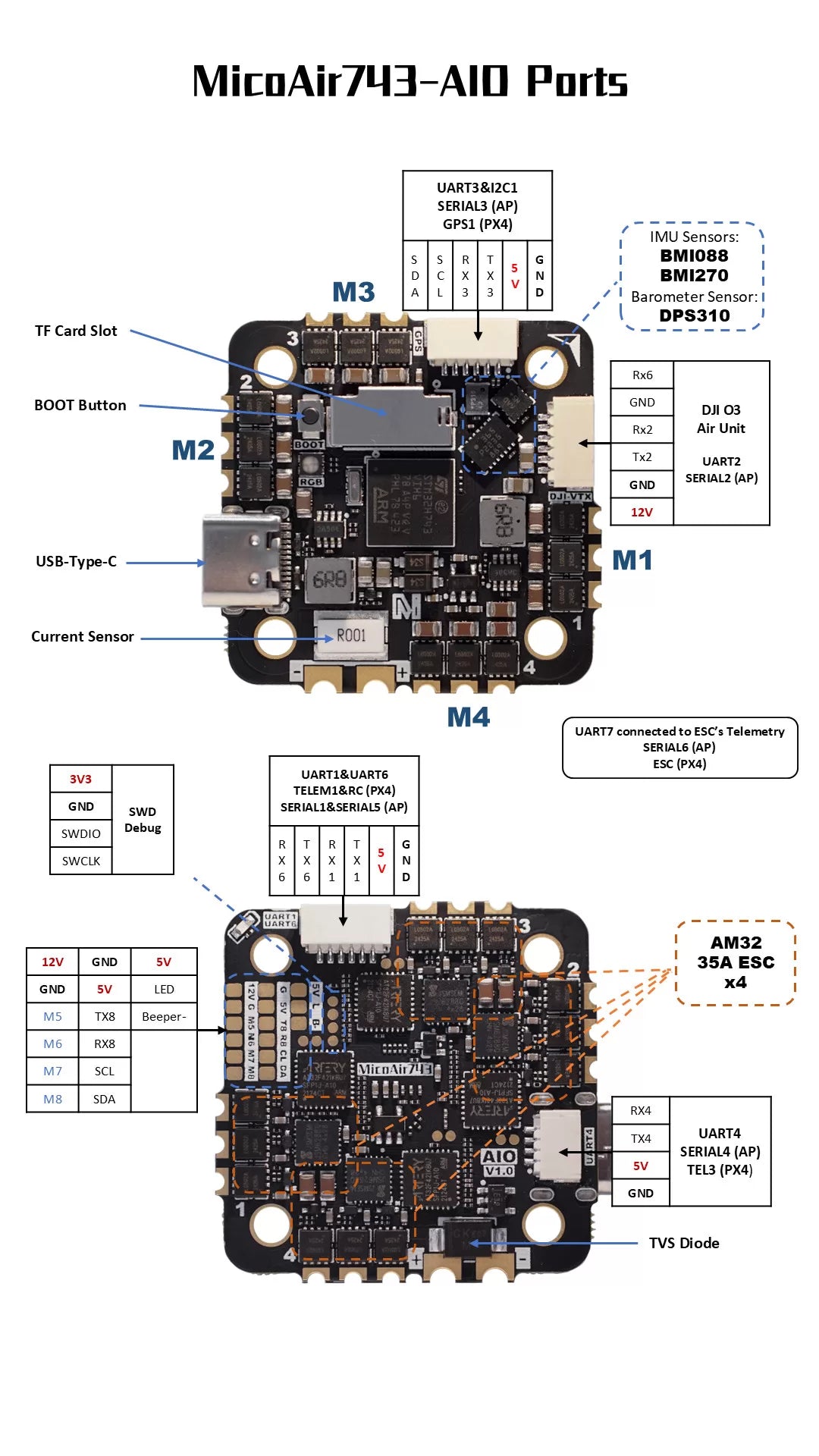

UART Mapping (Ardupilot)

SERIAL0 -> USB
SERIAL1 -> UART1 (MAVLink2, DMA-enabled)
SERIAL2 -> UART2 (VTX-HD, DMA-enabled)
SERIAL3 -> UART3 (GPS, DMA-enabled)
SERIAL4 -> UART4 (MAVLink2, DMA-enabled)
SERIAL5 -> UART6 (RCIN, DMA–enabled)
SERIAL6-> UART7 (ESC Telemetry, DMA-enabled)
SERIAL7 -> UART8 (DMA–enabled)

UART Mapping (PX4)

ttyACM0 -> USB
ttyS0 -> TELEM1 -> UART1
ttyS1 -> TELEM2 -> UART2
ttyS2 -> GPS1 -> UART3
ttyS3 -> TELEM3-> UART4
ttyS4 -> RC -> UART6
ttyS5 -> ESC -> UART7
ttyS6 -> TELEM4 -> UART8

RC Input (Ardupilot)

The default RC input is configured on the UART6. The SBUS pin is inverted and connected to RX6. Non SBUS, single wire serial inputs can be directly tied to RX6 if SBUS pin is left unconnected. RC could be applied instead at a different UART port such as UART2, UART4 or UART8, and set the protocol to receive RC data: SERIALn_PROTOCOL=23 and change SERIAL5 _Protocol to something other than 23.

OSD Support (Ardupilot)

The MicoAir743-AIO supports OSD using OSD_TYPE 5 (MSP_DISPLAYPORT).

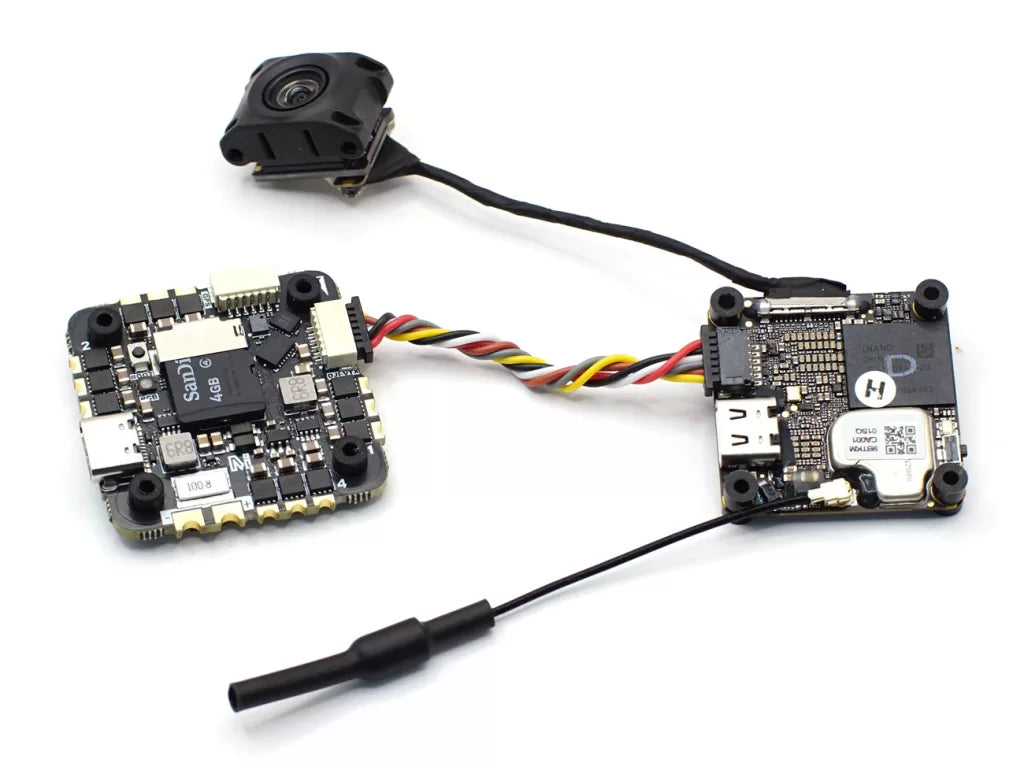

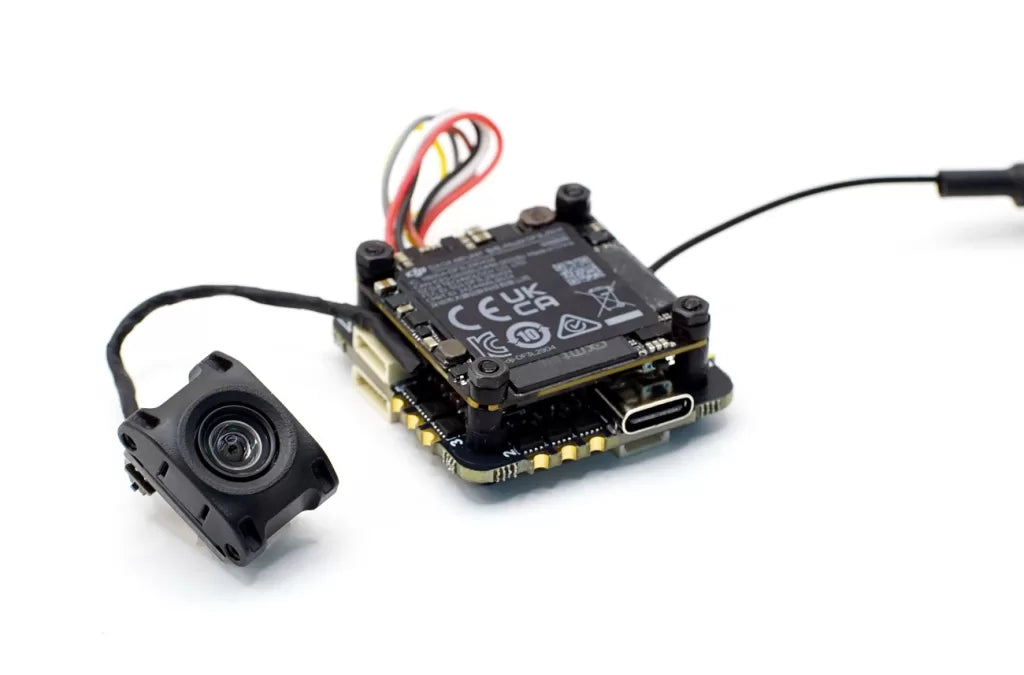

VTX Support

The SH1.0-6P connector supports a DJI Air Unit / HD VTX connection. Protocol defaults to DisplayPort. Pin 1 of the connector is 12v so be careful not to connect this to a peripheral requiring 5v.
