A complete correction source in one box

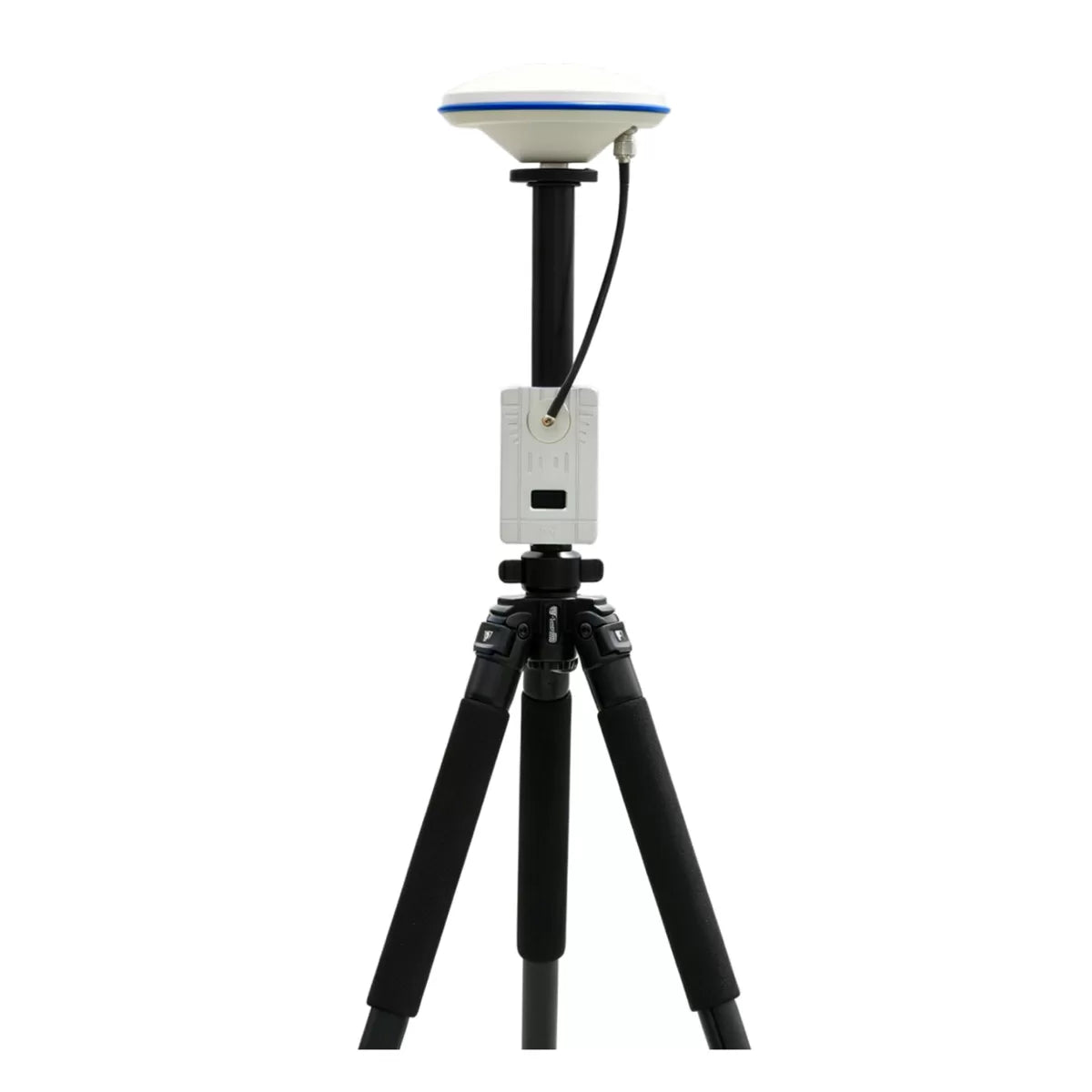

The MA-RTK-BASE Kit is everything needed to generate RTK corrections in the field: a battery-powered base station on the Unicore UM982 triple-band (L1+L2+L5) receiver, a survey tripod, a multi-band mushroom antenna and all cabling. Power it on, give it sky view, and once the PVT indicator goes solid it emits standard RTCM3 corrections on both USB-C and UART — zero configuration required. An OLED screen shows status at a glance.

One base serves unlimited rovers. Relay the corrections through Mission Planner or MicoConfigurator over your existing telemetry (QGroundControl's RTCM relay does not currently support this base), or attach a telemetry radio directly to the base's UART for laptop-free broadcast to a whole fleet — both workflows are covered in our setup guide.

Key specifications

• Receiver: Unicore UM982 · L1+L2+L5 multi-band
• Output: RTCM3 at 1 Hz (configurable) · 115200 baud on USB-C (UART1) and GH1.25-4P (UART2), both simultaneously
• Battery: 2 × 21700 Li-ion (2 × 5000 mAh) · ≈ 12 h runtime with active antenna + 1 W radio
• Charging: USB-C, 10 W (5 V/2 A) · CH340 USB-serial (Windows driver required)

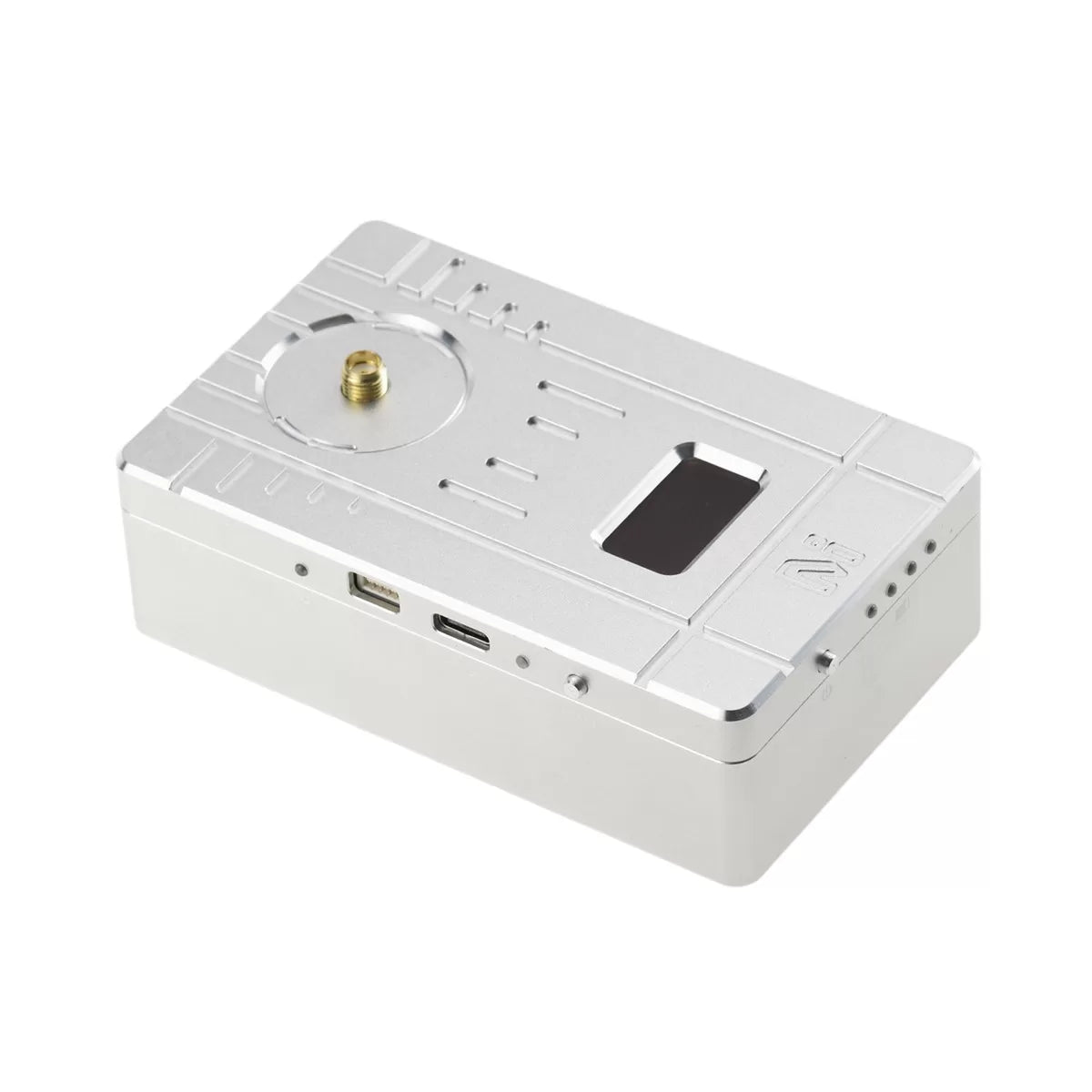

• OLED status display · PVT / power / charge indicators · factory-reset button

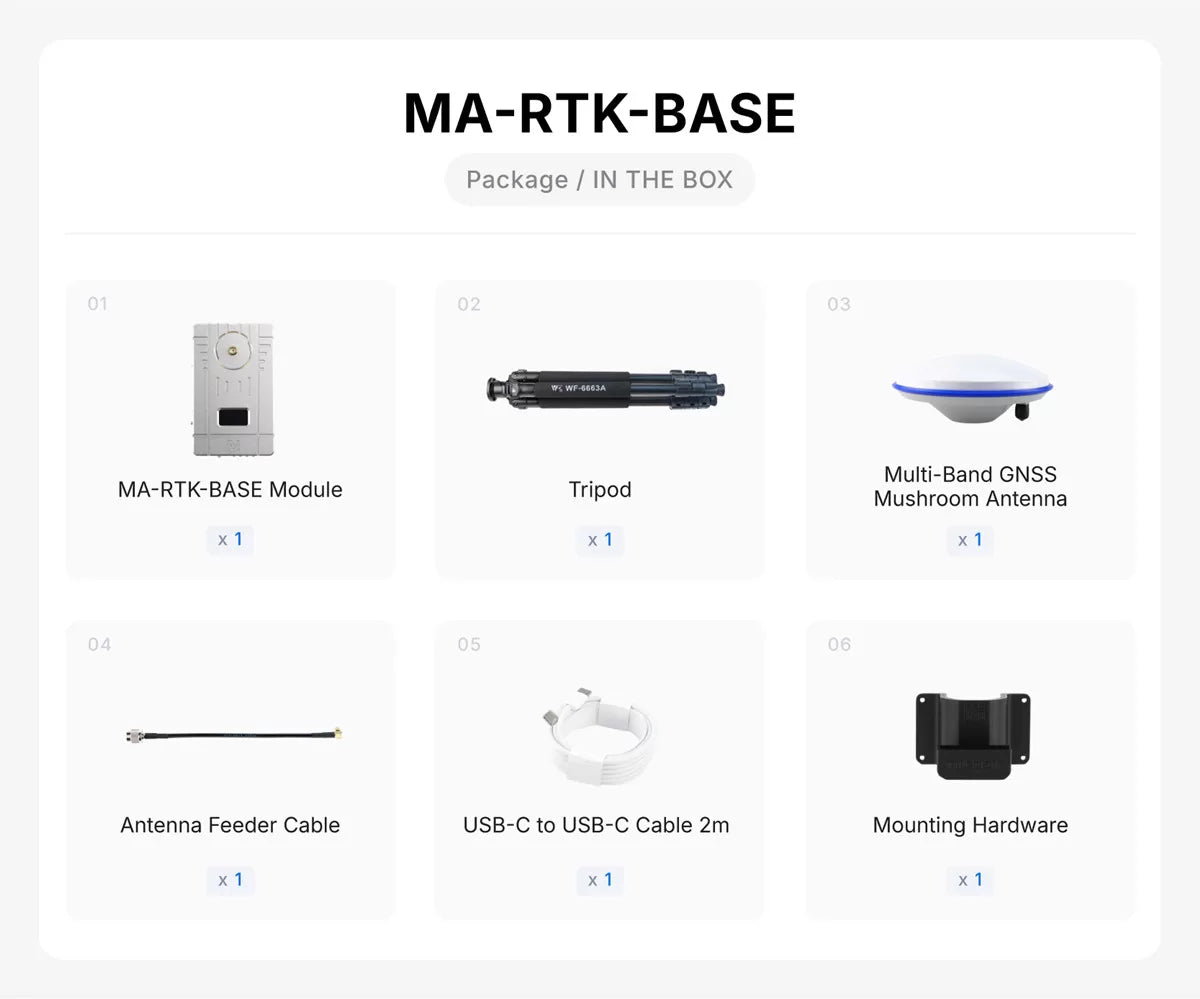

In the box

Base station module, tripod, multi-band GNSS mushroom antenna, antenna feeder cable, USB-C to USB-C cable 2 m, mounting hardware.

Complete the system

Add one or more MicoAir rovers — MA-RTK-AIR-982 (flagship, dual-antenna heading), MA-RTK-AIR-F9P (u-blox), or MA-RTK-AIR-626 (fleet/budget) — and optionally an LR900-F radio pair for direct broadcast.
