MicoAir MG-F10-C Dual-Band GNSS Module — L1+L5 Sub-Meter GPS, u-blox NEO-F10N, IST8310 Compass, Quad-Helix Antenna, for ArduPilot / PX4

📘 Documentation & Guides

• MG-F10-C — Full User Manual — specifications, wiring, ArduPilot / PX4 setup, and a plain-English explainer of how dual-band GNSS works

Setting it up with an AI assistant? Read our AI setup guide first. It shows you how to point ChatGPT, Claude or Gemini at the official manual for this product, so the answers come from the real pinout and parameter names instead of guesses.

Overview

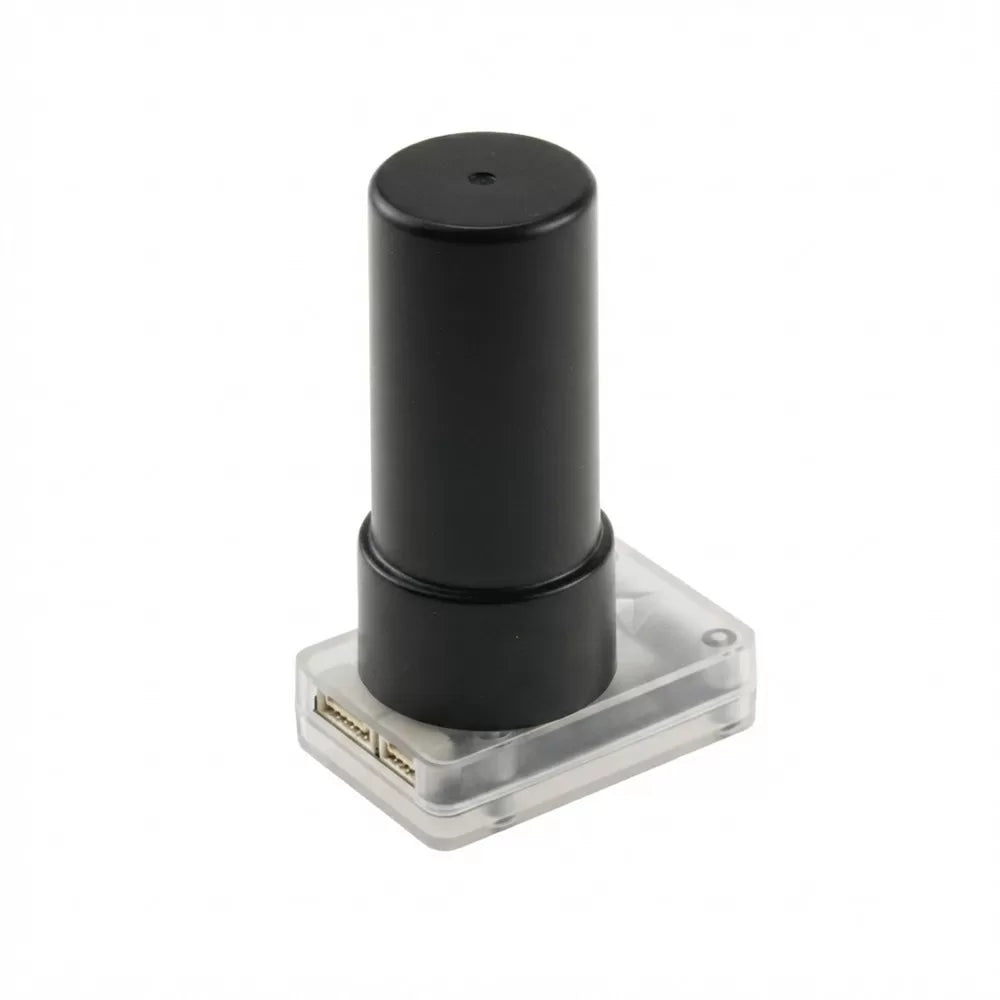

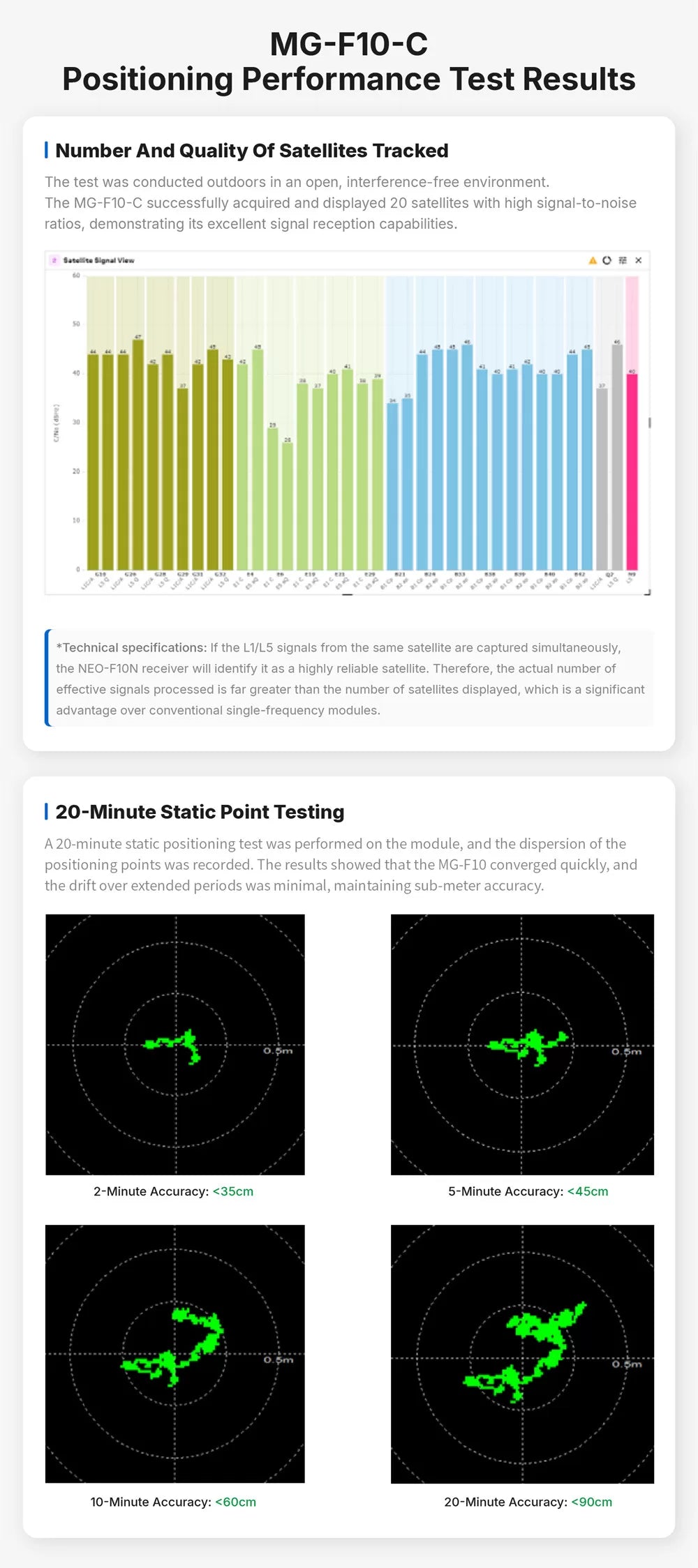

The MG-F10-C is MicoAir's latest-generation dual-band GNSS positioning module, built around the u-blox NEO-F10N receiver and a high-gain 38 dB quad-helix antenna. It tracks four constellations (GPS, BeiDou, Galileo, NavIC) on two frequencies at once (L1 + L5) — the best positioning performance available short of full RTK, with 1.0 m CEP accuracy and measured static drift under 35–90 cm. An IST8310 magnetometer provides a stable heading reference, and a built-in supercapacitor delivers 2-second hot starts after battery swaps.

Why dual-band matters

Single-frequency (L1-only) GPS modules carry two error sources they physically cannot remove: ionospheric delay and multipath reflections. A dual-band receiver compares each satellite's L1 and L5 arrival times to cancel ionospheric error outright, while the newer, wider-bandwidth L5 signal is inherently resistant to multipath. The result is roughly 1 m accuracy instead of the typical 2–3 m, firmer position holds, and better velocity accuracy — which your flight controller's EKF uses on every loop. Ideal for long-range flights, fixed-wing aircraft, autonomous missions, and flying near terrain or structures.

Features

• u-blox NEO-F10N dual-band (L1 1575.42 MHz + L5 1176.45 MHz) receiver
• Concurrent GPS/QZSS, Galileo, BeiDou, NavIC + SBAS
• 1.0 m CEP positioning accuracy · 10 Hz max navigation rate
• IST8310 high-performance compass (I2C)
• 38 dB active 4-arm helix antenna — wide beam, strong multipath rejection
• Cold start 28 s · hot start 2 s (supercapacitor-backed)
• Sensitivity: −167 dBm tracking · operational limits 80 km / 500 m/s / 4 g
• PPS output pin + blue PPS LED (blinks on 3D fix)
• Flash parameter storage — settings survive power-off
• ArduPilot ≥ 4.4.0 and PX4 ≥ 1.14.0 support, plug-and-play as a standard u-blox GPS

Specifications

• Receiver: u-blox NEO-F10N · Compass: IST8310
• Signals: GPS/QZSS L1C/A+L5, Galileo E1-B/C+E5a, BeiDou B1C+B2a, NavIC SPS-L5, SBAS
• Supply: 5 V · 30 mA (module) / 55 mA (with antenna)
• UART: 115200 factory default, 3.3 V TTL, UBX-PVT output

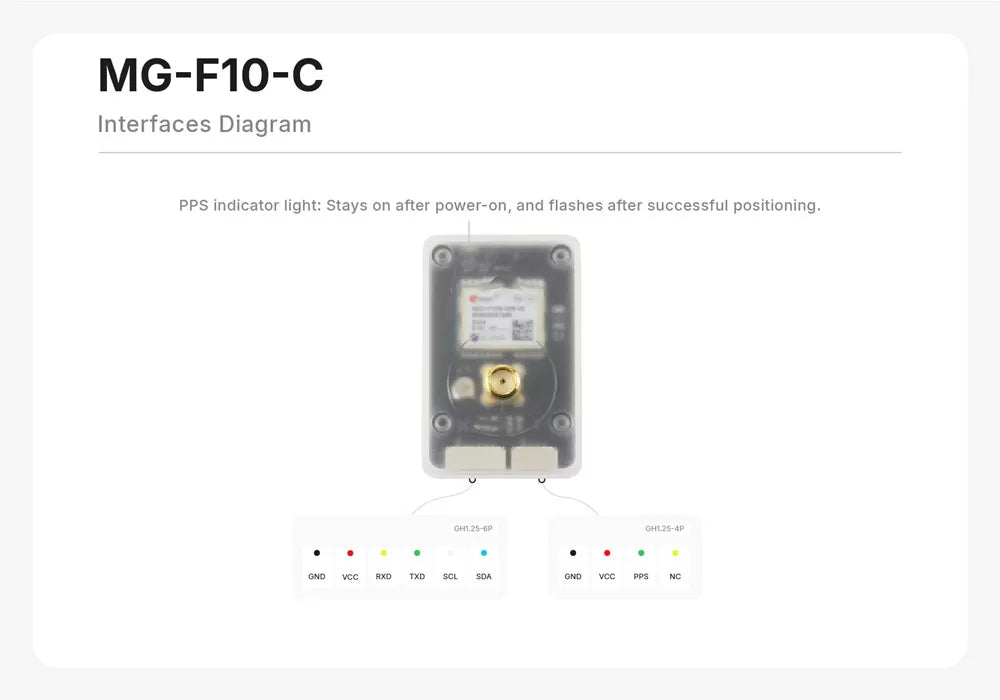

• Connectors: GH1.25-6P (UART + I2C) and GH1.25-4P (PPS)

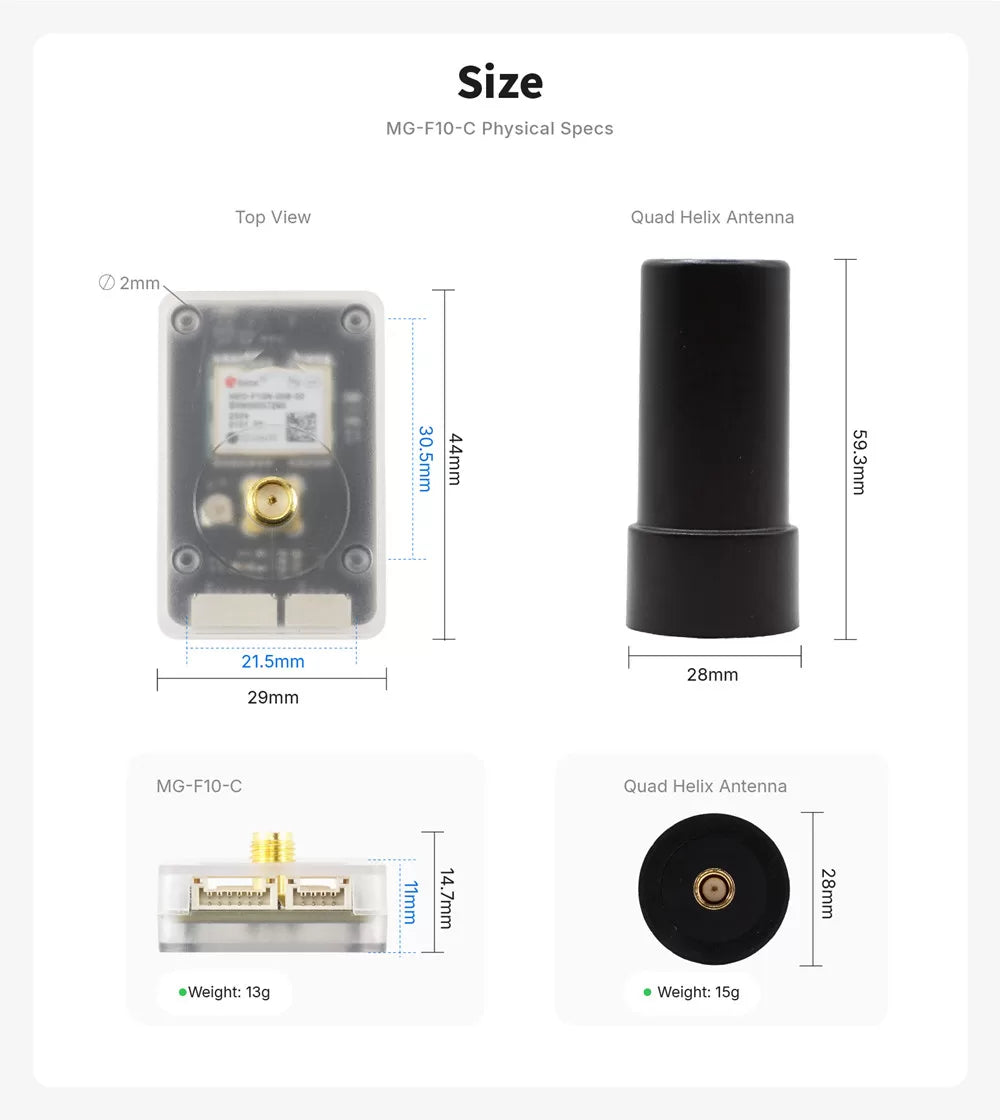

• Module: 29 × 44 × 14.7 mm, 13 g · Antenna: 28 × 28 × 59.3 mm, 15 g
• Operating temperature: −40 °C to +85 °C

Wiring & setup

Connect the 6-pin to a spare UART (RxD → FC TX, TxD → FC RX) plus SCL/SDA for the compass; power from 5 V. On ArduPilot: SERIALn_PROTOCOL = 5, GPS_TYPE = 1 (Auto) — defaults work on most boards. On PX4: connect to GPS1, auto-detected. Full parameter walkthrough in the user manual.

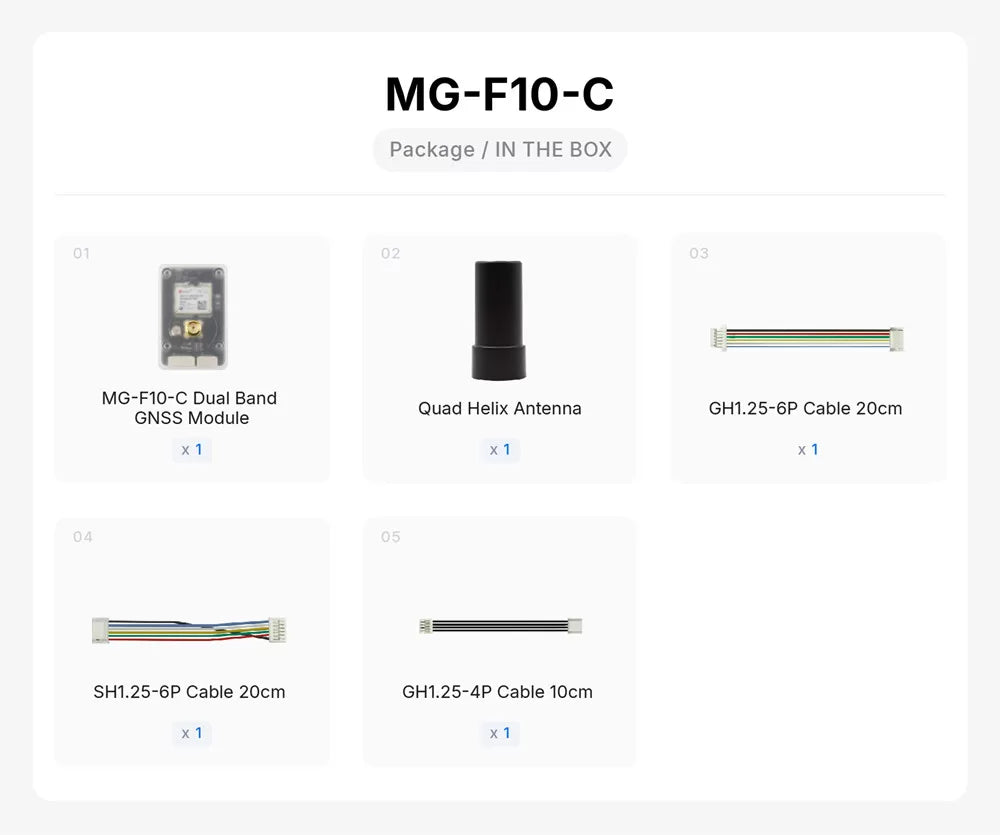

Package list

• 1 × MG-F10-C dual-band GNSS module
• 1 × Quad-helix antenna (SMA)
• 1 × GH1.25-6P cable, 20 cm
• 1 × SH1.25-6P cable, 20 cm
• 1 × GH1.25-4P cable, 10 cm

Technical Support

If you encounter any usage issues or require technical support after receiving your product, please feel free to contact us at support@robofusion.net. Our technical support team will respond within 24 hours on business days (excluding public holidays). First-line answers for most setup questions are already in our knowledge base at docs.robofusion.net.
