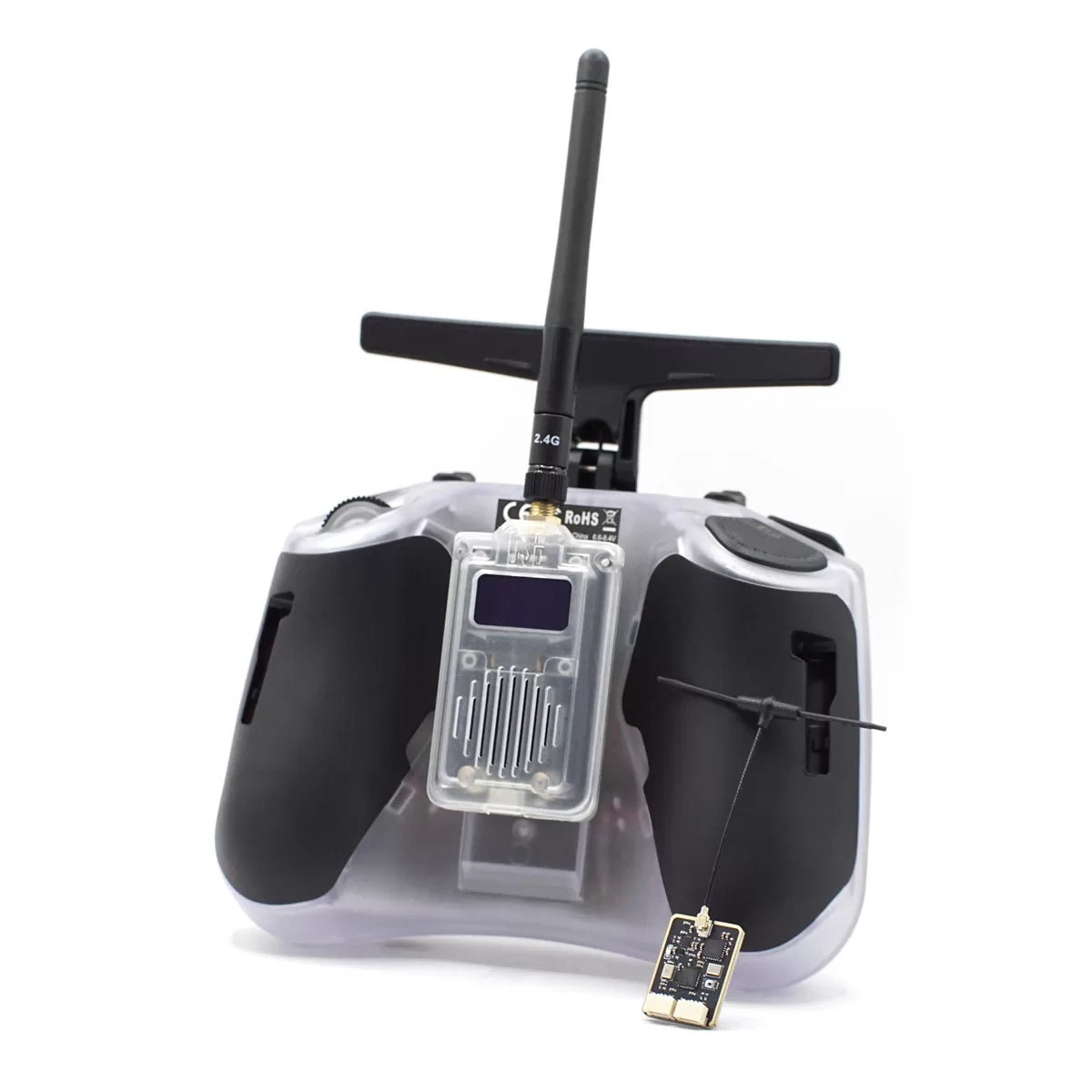

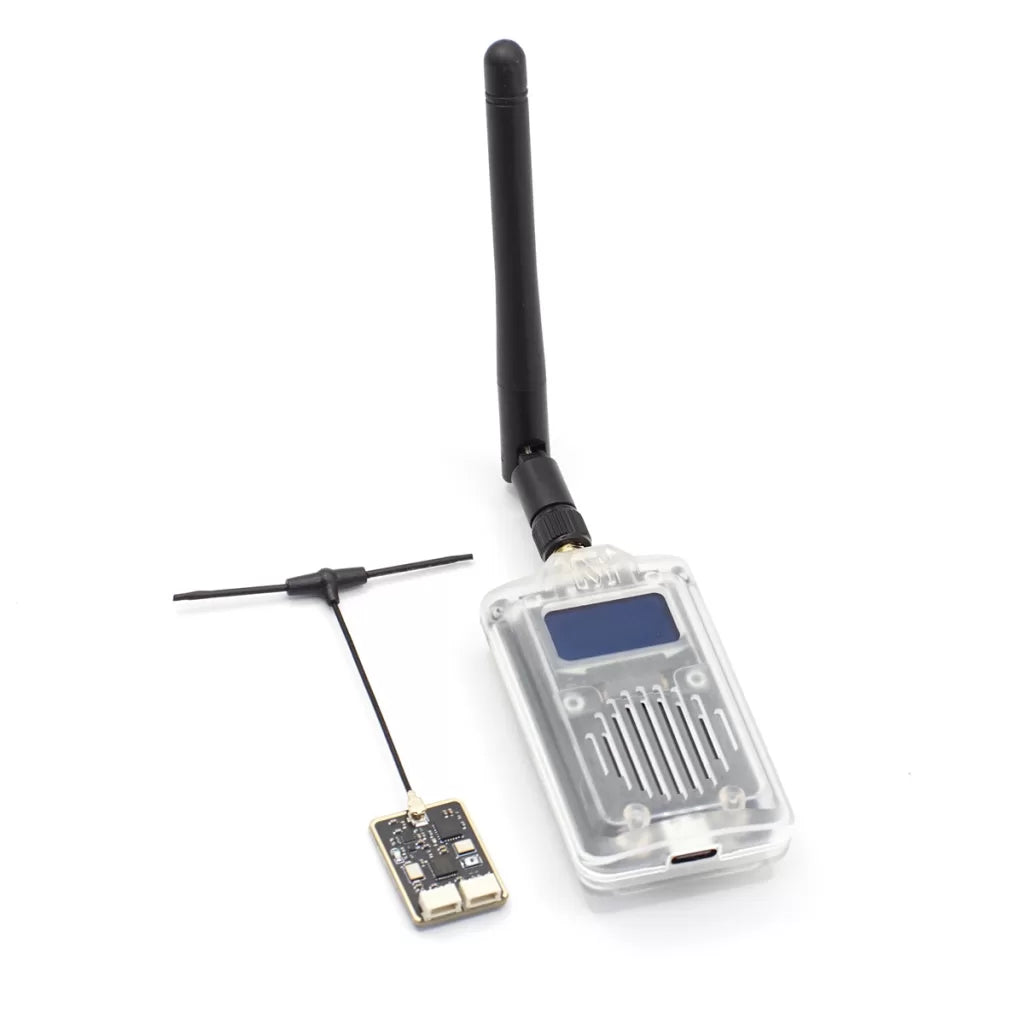

MicoAir TRS 2.4GHz RC + Telemetry 2-in-1 System — 500mW TX Module & SBUS Receiver for ArduPilot / PX4

Overview

The MicoAir TRS combines your radio control link and telemetry data link in one 2.4GHz LoRa system — one TX module in your radio, one 2.5 g receiver on the aircraft, and a single encrypted FHSS link carrying both your stick inputs (up to 150 Hz) and bidirectional MAVLink telemetry (up to 8 KB/s) at the same time.

A conventional long-range build needs two separate radio systems: an RC link (like ELRS) plus a dedicated telemetry radio. That means two receivers, two antennas, and two frequency plans that can interfere with each other. The TRS folds both jobs into one link — no 2.4GHz self-interference problem, less weight, simpler wiring.

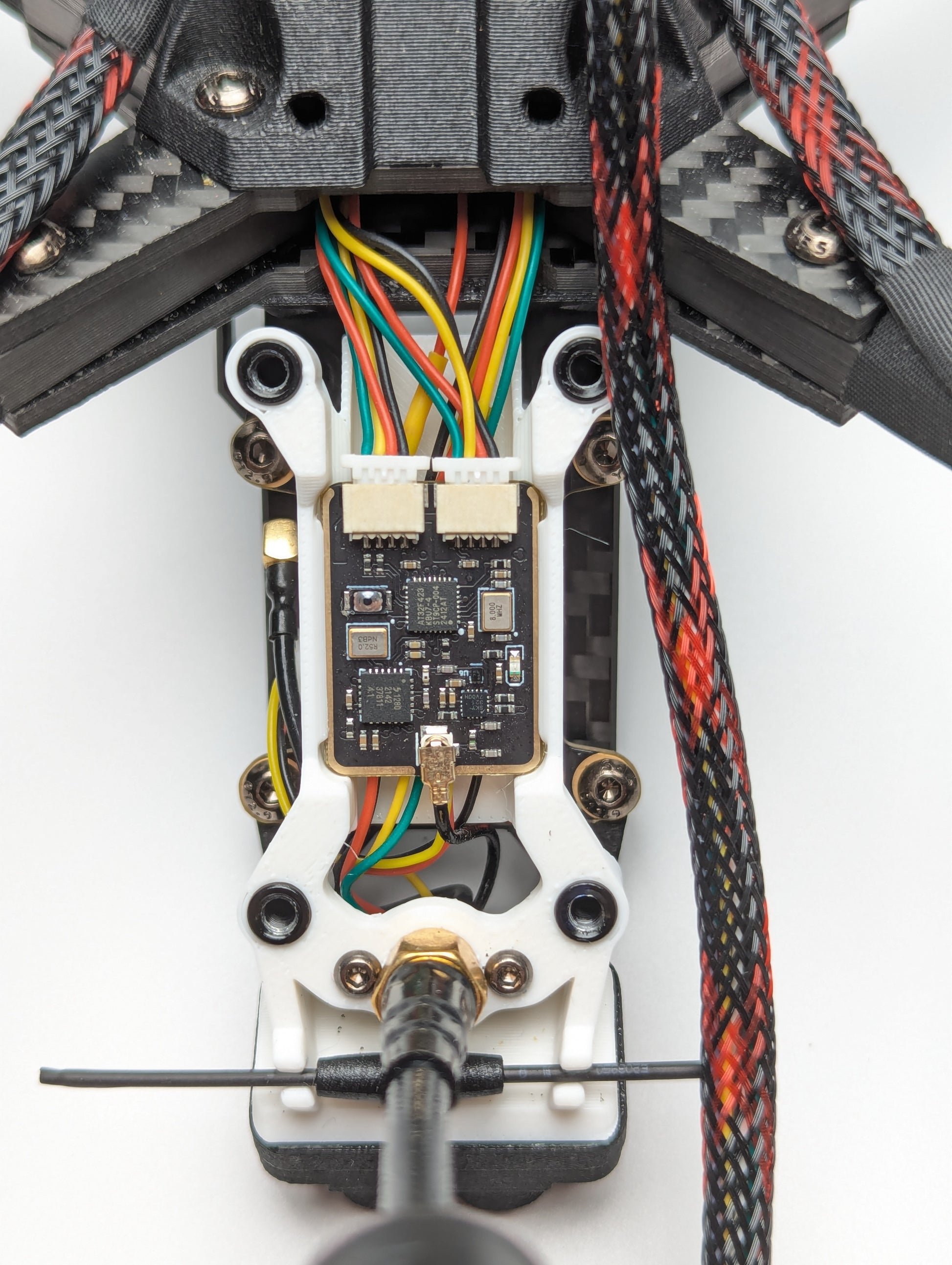

The receiver outputs SBUS for control and a serial MAVLink telemetry stream, so it works with any ArduPilot or PX4 flight controller (Pixhawk and others). Your ground station connects through the TX module — including wirelessly from an Android phone running QGroundControl over built-in Bluetooth, with no cable to your radio.

Features

• RC + telemetry in a single 2.4GHz link — replaces a separate RC system and telemetry radio
• LoRa spread spectrum + encrypted FHSS frequency hopping for strong anti-interference performance
• TX module transmit power up to 27dBm (500mW); receiver up to 27dBm (500mW), self-adaptive
• 10–15 km effective range in open, interference-free conditions (farther with a high-gain directional antenna on the TX module)
• RC update rate up to 150 Hz; telemetry throughput up to 8 KB/s bidirectional
• Built-in Bluetooth — connect QGroundControl on Android wirelessly

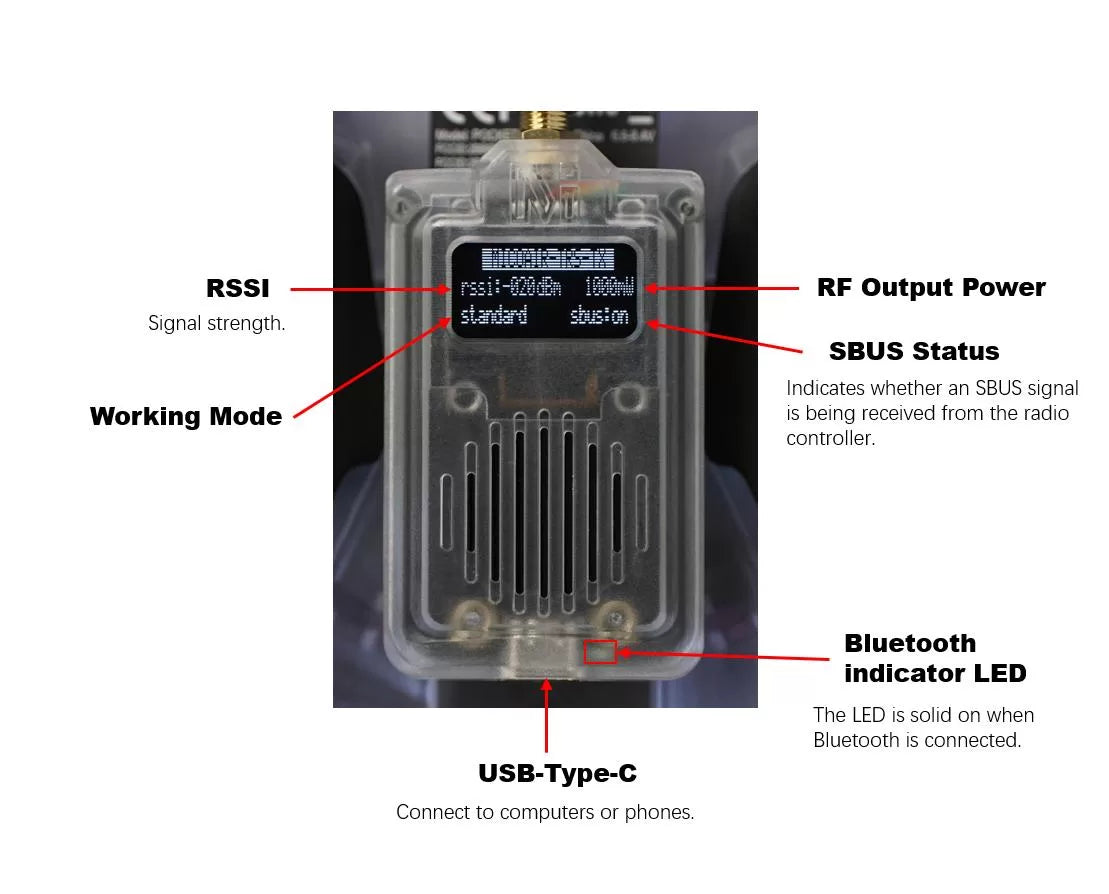

• OLED display on the TX module showing work mode, power and link status at a glance

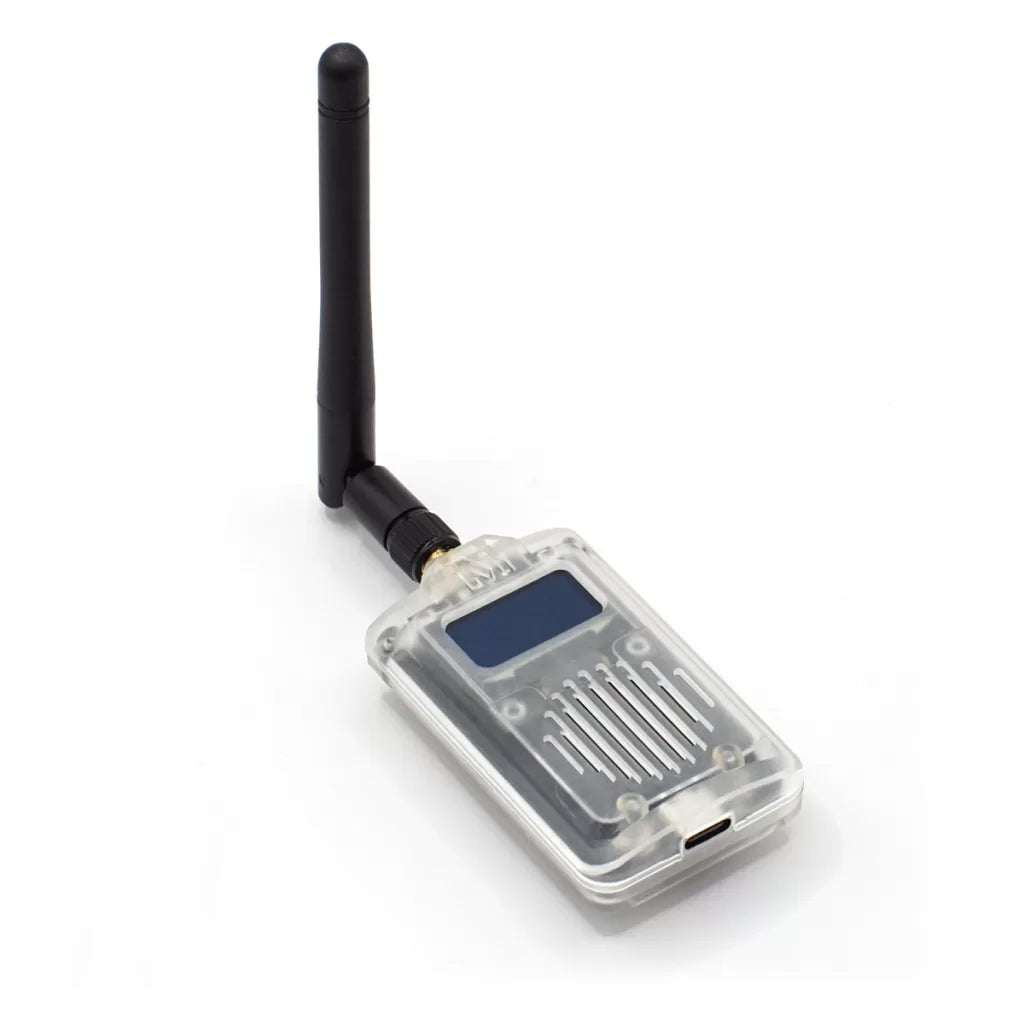

• NANO module bay — fits compact OpenTX/EdgeTX radios (RadioMaster Pocket, Jumper T-Pro, etc.); JR-bay radios via a JR→NANO adapter

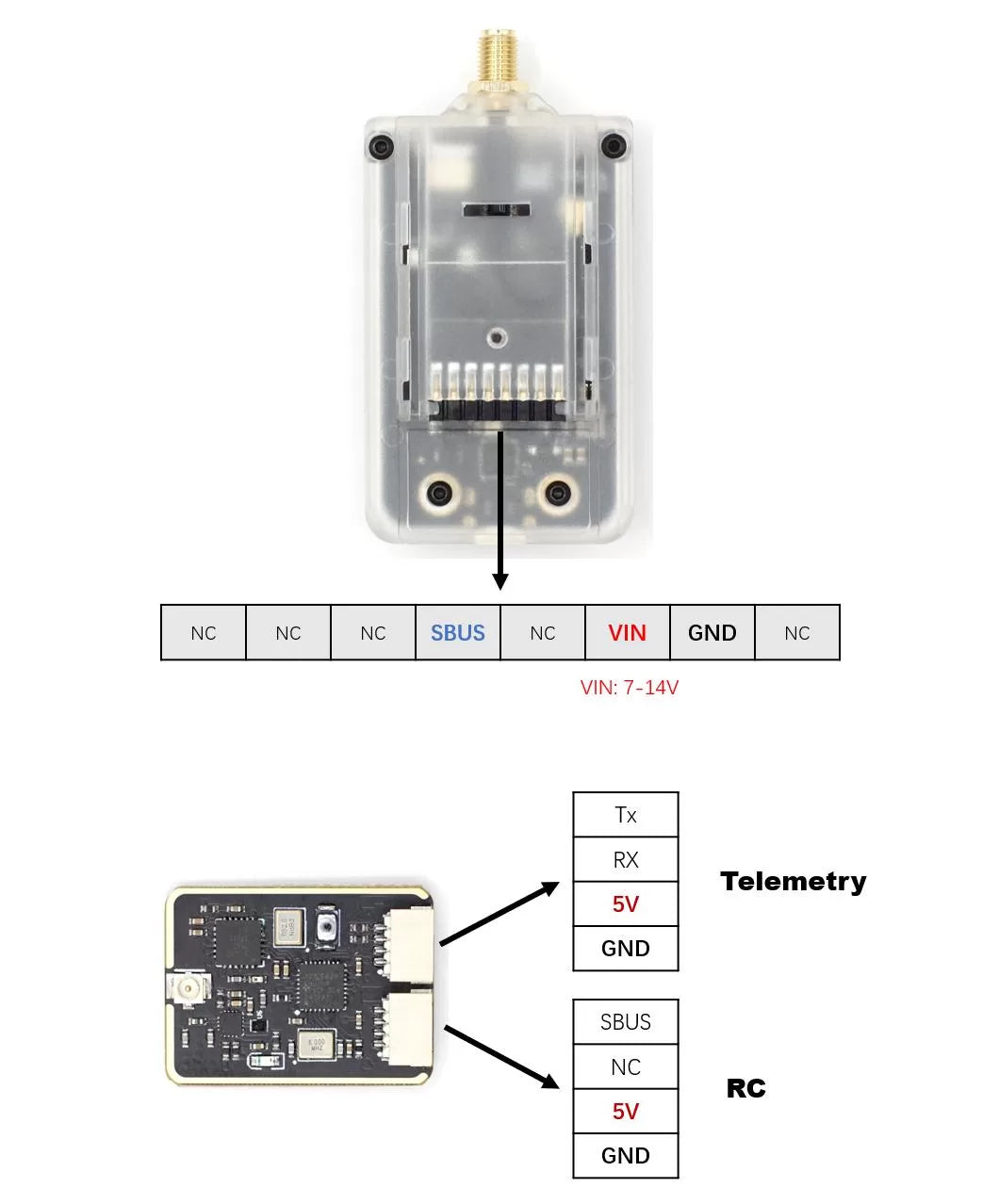

• Ultra-light 2.5 g receiver with SBUS out + telemetry serial port

Work Modes

Three modes trade range against control rate and data rate:

Long-range mode suits cruising wings and mappers; high-speed gives the snappiest stick feel and fastest parameter transfers. The receiver adopts the matching baud rate automatically after re-binding — just set your flight-controller port to match.

Specifications

Link

• Band: 2.4GHz ISM (LoRa spread spectrum + encrypted FHSS)
• TX module power: up to 27dBm (500mW); Receiver: up to 27dBm (500mW), self-adaptive
• RSSI: written to SBUS channel 12 — no extra RSSI wire needed
• Range: 10–15 km open conditions; 3–5 km with light interference, unobstructed
• RC output protocol: SBUS

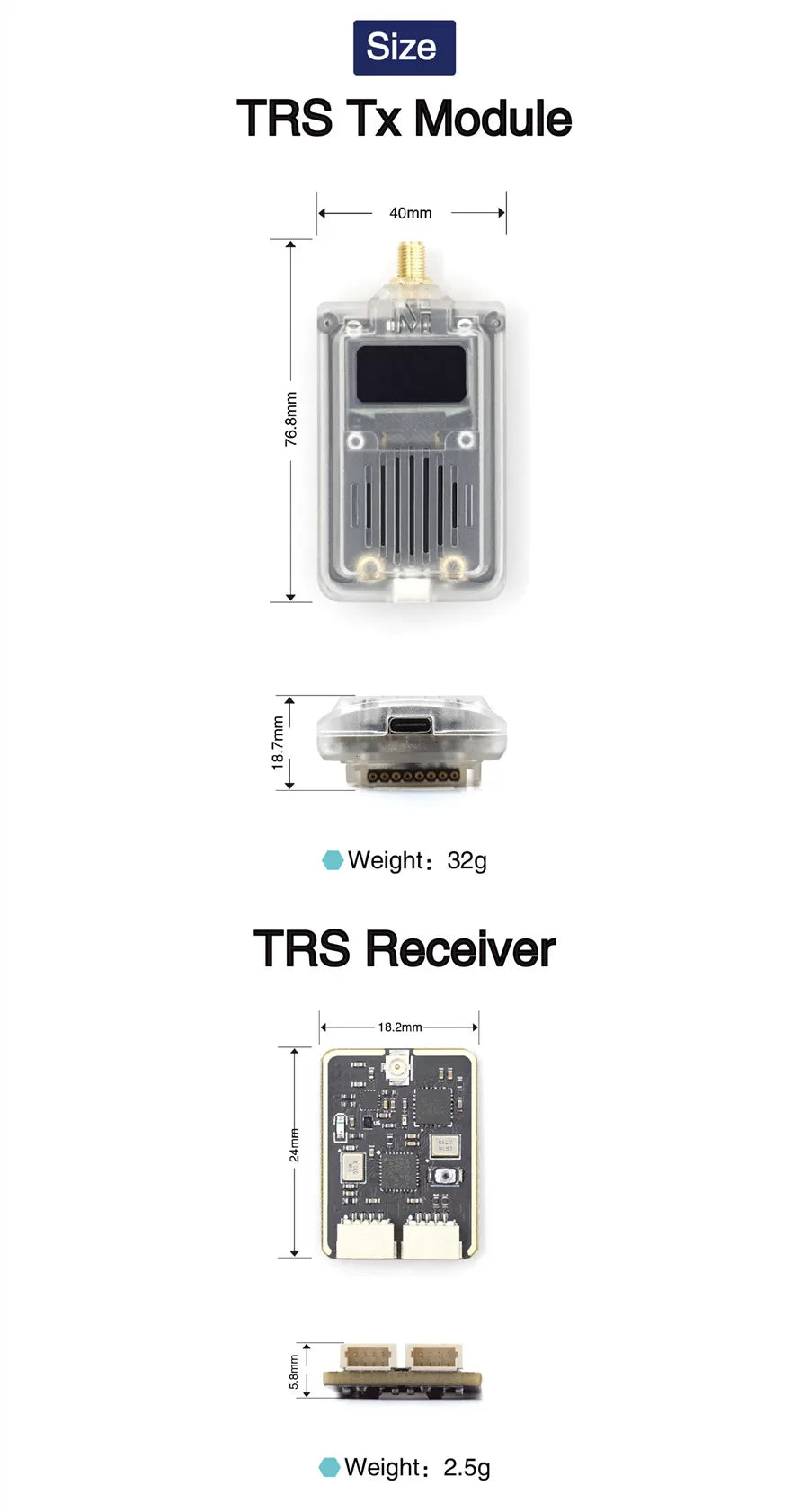

Physical

• TX module: 76.8 × 40 × 18.7 mm, 32 g
• Receiver: 24 × 18.2 × 5.8 mm, 2.5 g

Binding

The receiver LED shows link status: solid = linked, slow blink = not connected, fast blink = binding mode.

• Step 1: Hold the receiver's bind button and power it on — the LED blinks rapidly (binding mode).
• Step 2: Power on (or power-cycle) the radio with the TX module installed — the pair binds automatically within a few seconds and the LED goes solid.

Documentation & Guides

• TRS User Manual — full specs, work modes, receiver wiring, OLED display & FAQ
• Connect QGroundControl on Android over Bluetooth — step-by-step
• ArduPilot Telemetry Setup Guide (Mission Planner)
• PX4 Telemetry Setup Guide (QGroundControl)
• CP2102 Driver Installation (Windows) — for configuring the TX module with MicoAssistant

Setting it up with an AI assistant? Read our AI setup guide first. It shows you how to point ChatGPT, Claude or Gemini at the official manual for this product, so the answers come from the real pinout and parameter names instead of guesses.

Already have an RC system and only need a data link? See our dedicated telemetry radios: LR24 (2.4GHz) and LR900 (915MHz).

Package List

• TRS TX Module × 1
• TRS Receiver × 1
• T-antenna (for receiver) × 1
• 2dBi antenna (for TX module) × 1
