Robofusion 5-Inch FPV Drone Electronics Kit — Complete ArduPilot Bundle: H743 FC, 50A ESC, GPS, RC+Telemetry, 2.5W VTX & Antenna, Optical Flow — Fits Any 5–7 Inch Frame

📘 Documentation & Guides

• Grasshopper5 Build Project — a complete open-source 5-inch build using exactly this kit, with a free 3D-printable frame, full wiring and firmware walkthrough
• Every component links to its own full manual on docs.robofusion.net

Setting it up with an AI assistant? Read our AI setup guide first. It shows you how to point ChatGPT, Claude or Gemini at the official manual for this product, so the answers come from the real pinout and parameter names instead of guesses.

Overview

Everything electronic you need for a GPS-capable, long-range 5-inch (or 7-inch) FPV drone — matched, tested together, and configured for ArduPilot out of the box (INAV and Betaflight also supported by the FC). One click instead of six product pages: flight controller, ESC, GPS with compass, RC + telemetry link, video transmitter with antenna, and an optical-flow/range sensor for position hold without GPS. Works with any frame that takes a 30.5×30.5 stack — including our free 3D-printable Grasshopper5, or any 5–7 inch frame you already own.

What's in the kit

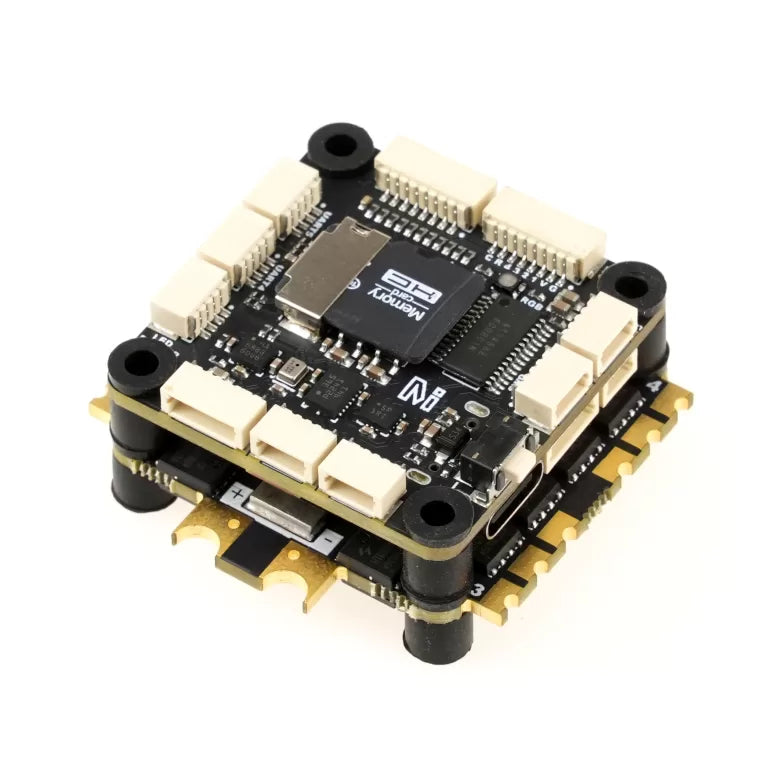

• Flight controller: MicoAir H743 V2 — STM32H743, dual IMU (BMI088+BMI270), Bluetooth telemetry, ArduPilot/PX4/INAV/Betaflight (manual)
• ESC: MicoAir 50A 4-in-1, Bluejay firmware, 2–6S, 30.5×30.5 & 20×20 mounting

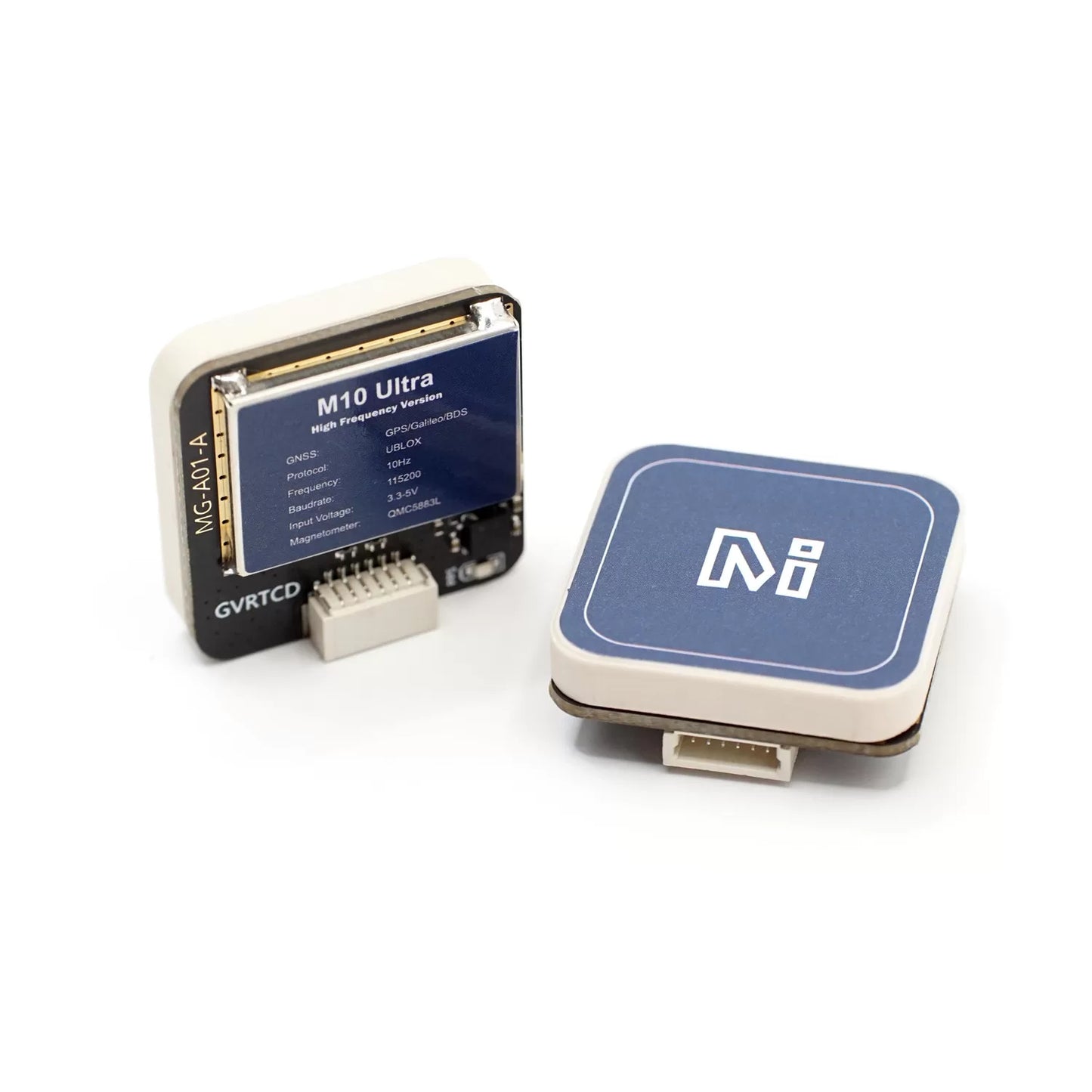

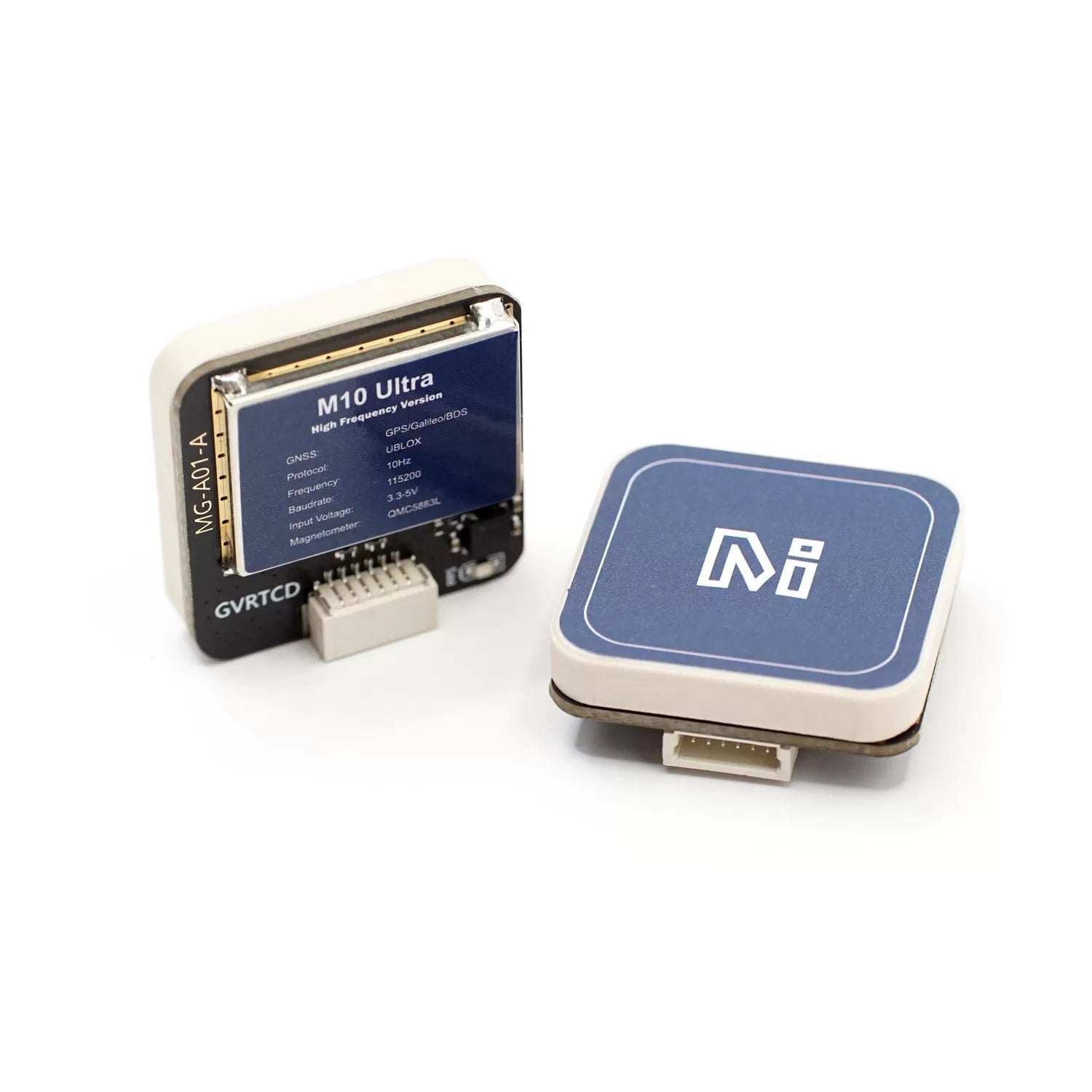

• GPS: your choice — Standard: M10G-5883 (M10 + QMC5883L compass) · Precision: MG-F10-C dual-band L1+L5 GNSS with IST8310, ~1 m accuracy (manual)
• RC + telemetry: MicoAir TRS 2.4 GHz 2-in-1 — 500 mW TX module (fits NANO-bay radios; JR-bay radios via a JR-to-NANO adapter) + SBUS receiver, stick control and MAVLink telemetry over one link (manual)

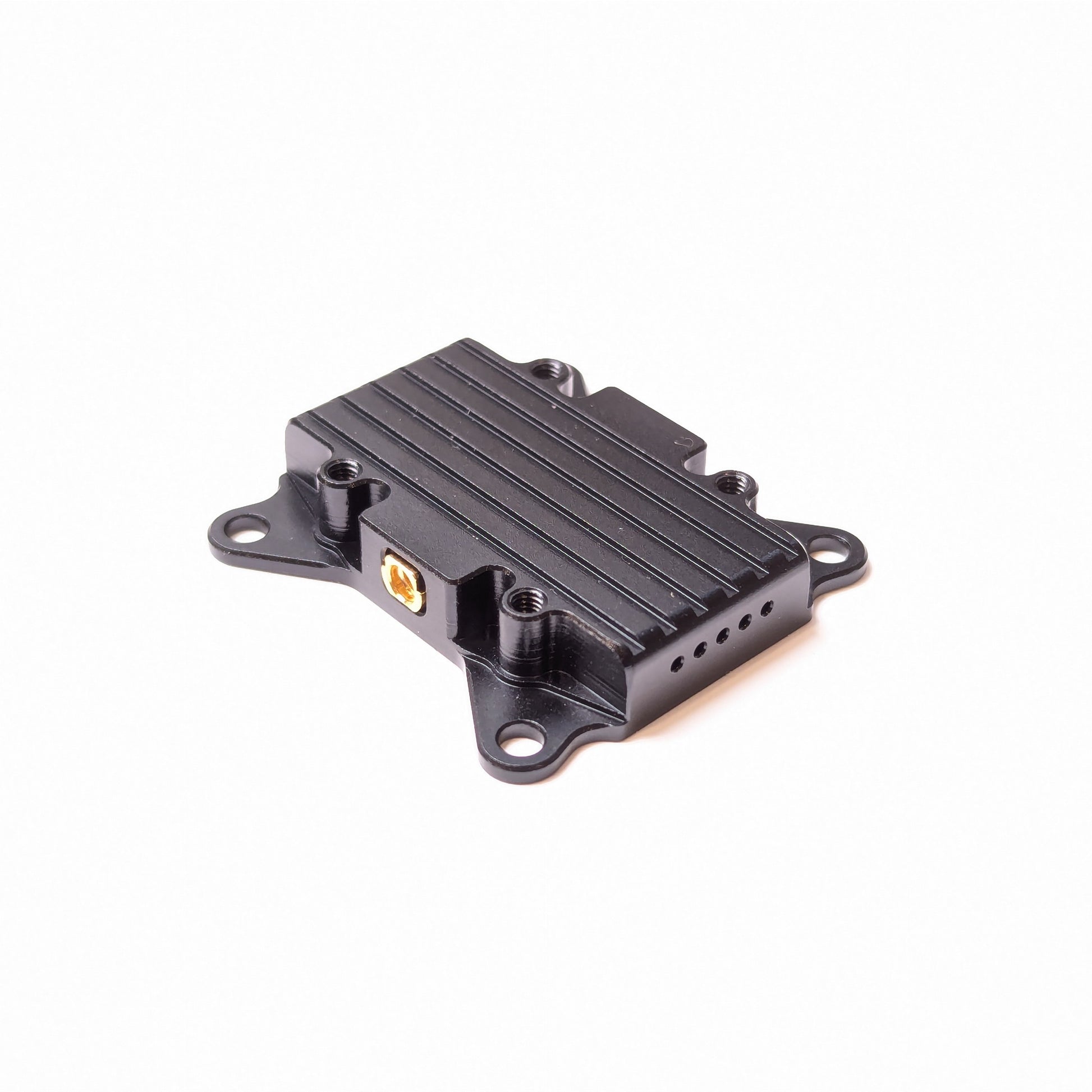

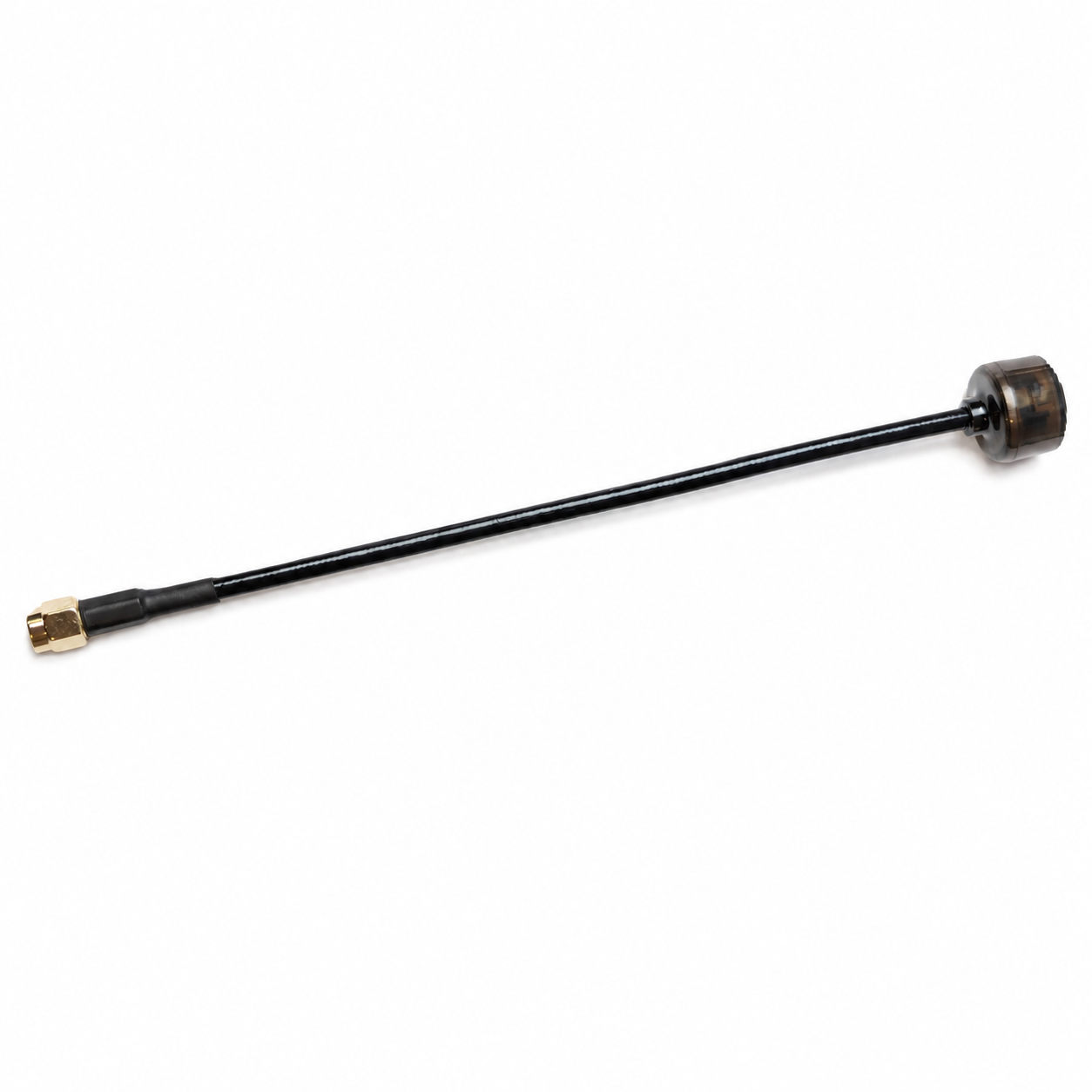

• Video: Robofusion VT5804 5.8 GHz analog VTX — 25–2500 mW, 48 channels, TBS SmartAudio (manual) + A5800 3 dBi omni antenna (lab test report)

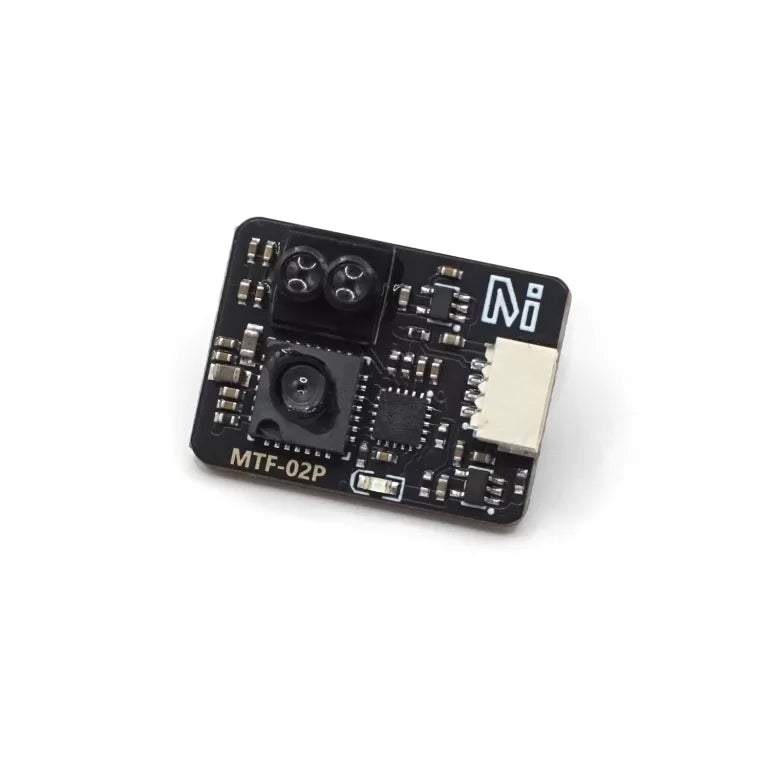

• Optical flow & range: MicoAir MTF-01P — position hold near the ground and where GPS is weak, precise low-altitude hold

You save vs buying separately — the Standard kit bundles $237.37 of components; the Precision kit $299.36. Both kits qualify for free US shipping (over $99).

What you still need (standard FPV parts we don't currently stock): a frame (print the Grasshopper5 free, or use any 5–7" frame), 4× motors (2207-class for 5"), props, an analog FPV camera, a 6S LiPo battery, and 5.8 GHz goggles or a receiver monitor.

Why this combination

Every part is from the same ecosystem we document and support daily: the FC's ports map directly to each peripheral (GPS → SERIAL3, TRS → RC input, VTX SmartAudio → spare UART, MTF-01P → I2C/UART), wiring is covered step-by-step in our knowledge base, and the whole stack is proven together on the Grasshopper5 project aircraft. No cross-brand guesswork, one support contact.
