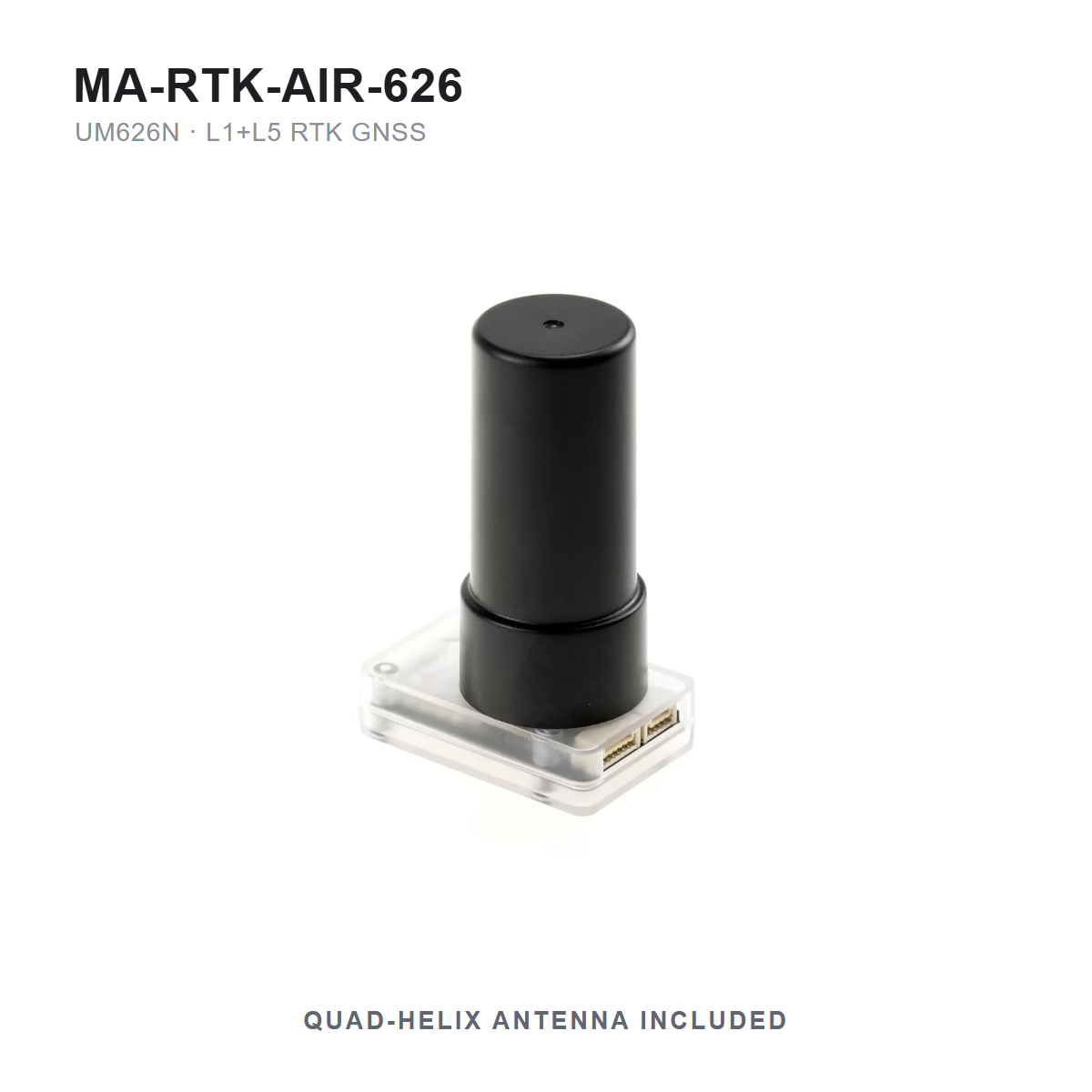

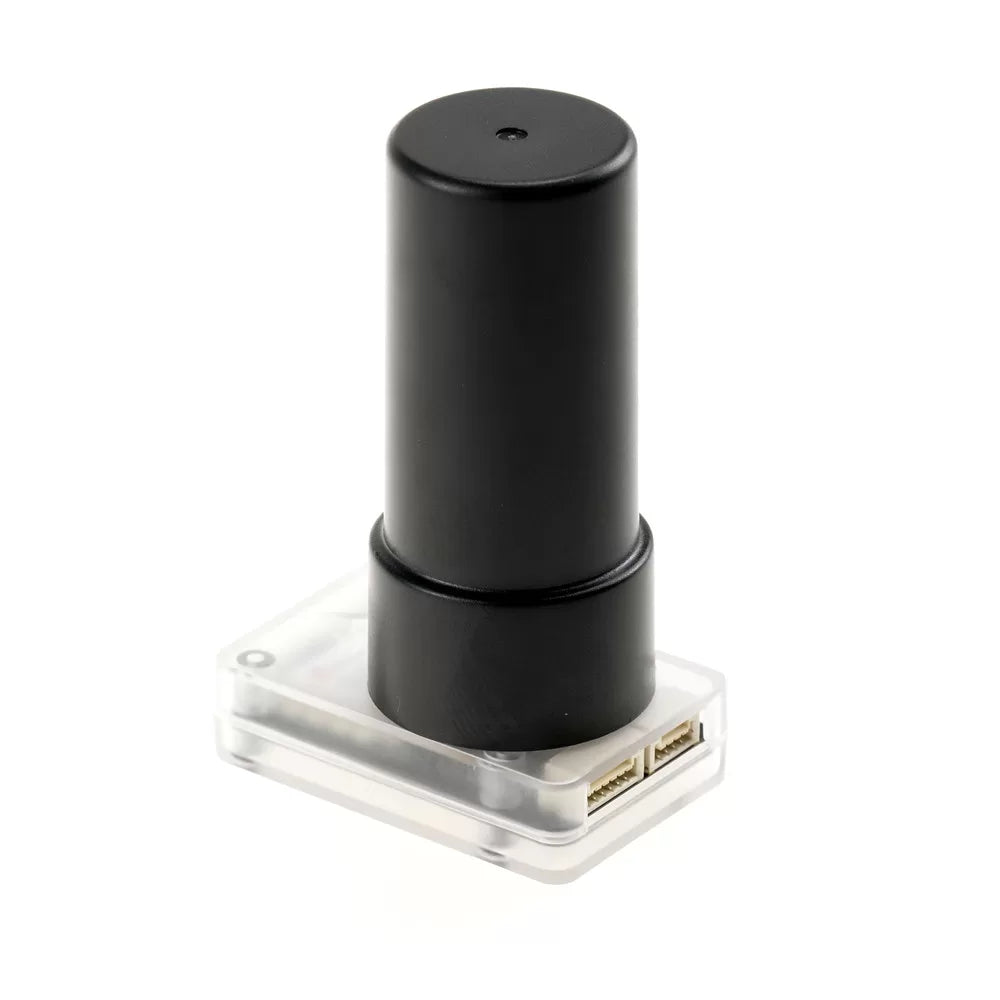

MicoAir MA-RTK-AIR-626 UM626N Dual-Band (L1+L5) RTK GNSS Module — Budget Centimeter GPS for Drone Swarms & Light Shows (ArduPilot)

📘 Documentation & Guides
MA-RTK Series — Full User Manual — specs, pinout, wiring, ArduPilot parameters
RTK Setup Guide — base station and corrections walkthrough
What Is RTK? — centimeter GPS explained in plain English

Setting it up with an AI assistant? Read our AI setup guide first. It shows you how to point ChatGPT, Claude or Gemini at the official manual for this product, so the answers come from the real pinout and parameter names instead of guesses.

Real RTK at a fleet-friendly price

The MA-RTK-AIR-626 exists for one reason: when a drone light show or research swarm needs every aircraft to hold a centimeter-grade position, the module cost multiplies by the fleet size. Built on the Unicore UM626N dual-band (L1+L5) receiver, the 626 delivers a true 1.5 cm + 1 ppm RTK FIX on ArduPilot at a fraction of the price of a conventional RTK module — and at only 200 mW it sips power and stays cool packed inside a small airframe.

One MicoAir MA-RTK-BASE station broadcasts corrections to an unlimited number of 626-equipped aircraft — the per-drone cost of centimeter positioning is just this module.

Key specifications

• Receiver: Unicore UM626N · L1+L5 · UBX-compatible protocol
• RTK accuracy: 1.5 cm + 1 ppm · 10 Hz max · 36 satellites
• Onboard IST8310 compass (I2C)
• Interfaces: SMA antenna · GH1.25-6P (FC UART+I2C) + GH1.25-4P (direct RTCM input)

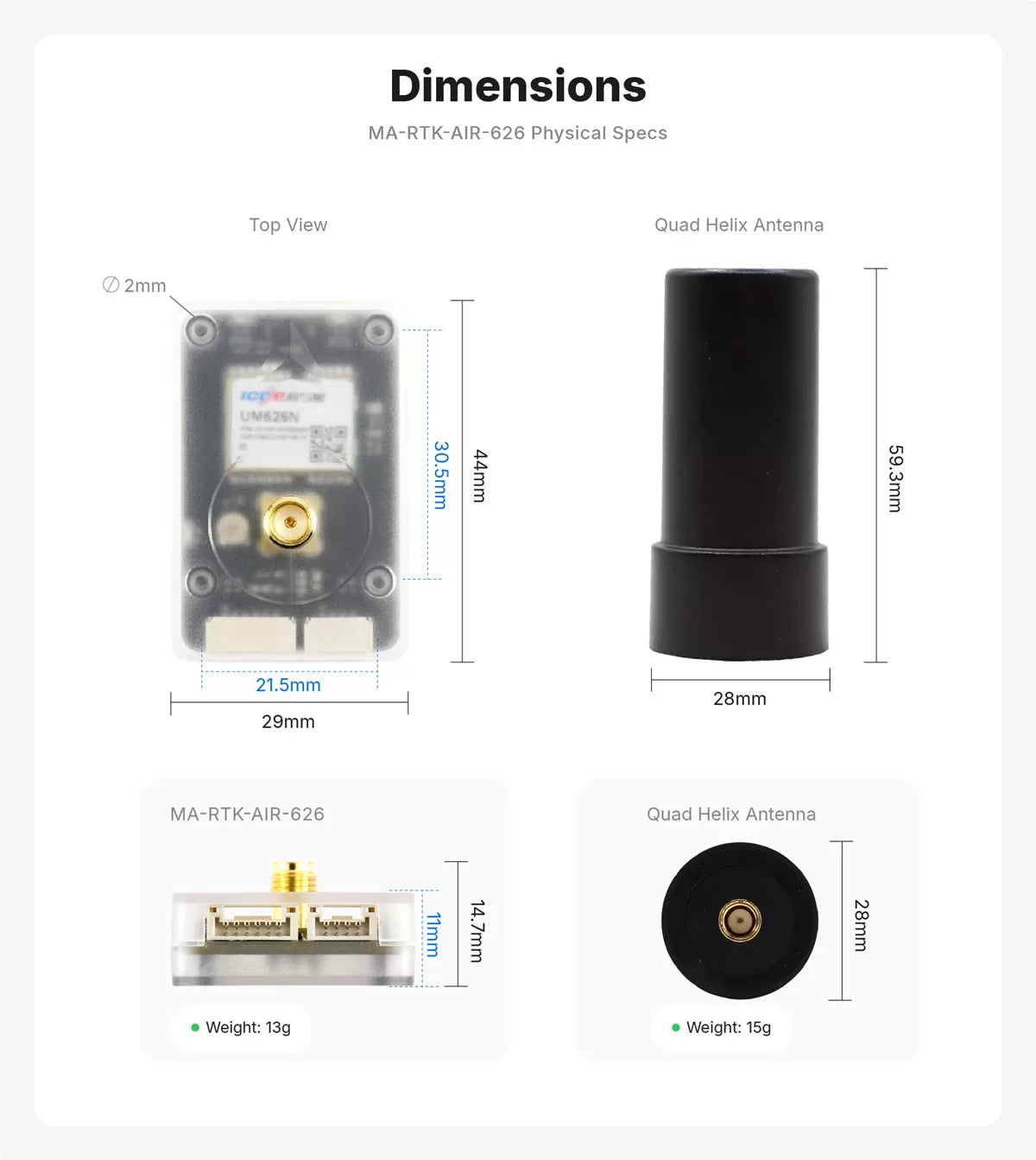

• 4–5 V · 200 mW · 44 × 29 × 14.7 mm · 13 g (without antenna)
• Firmware: ArduPilot only (PX4 not currently supported) · UART fixed at 115200

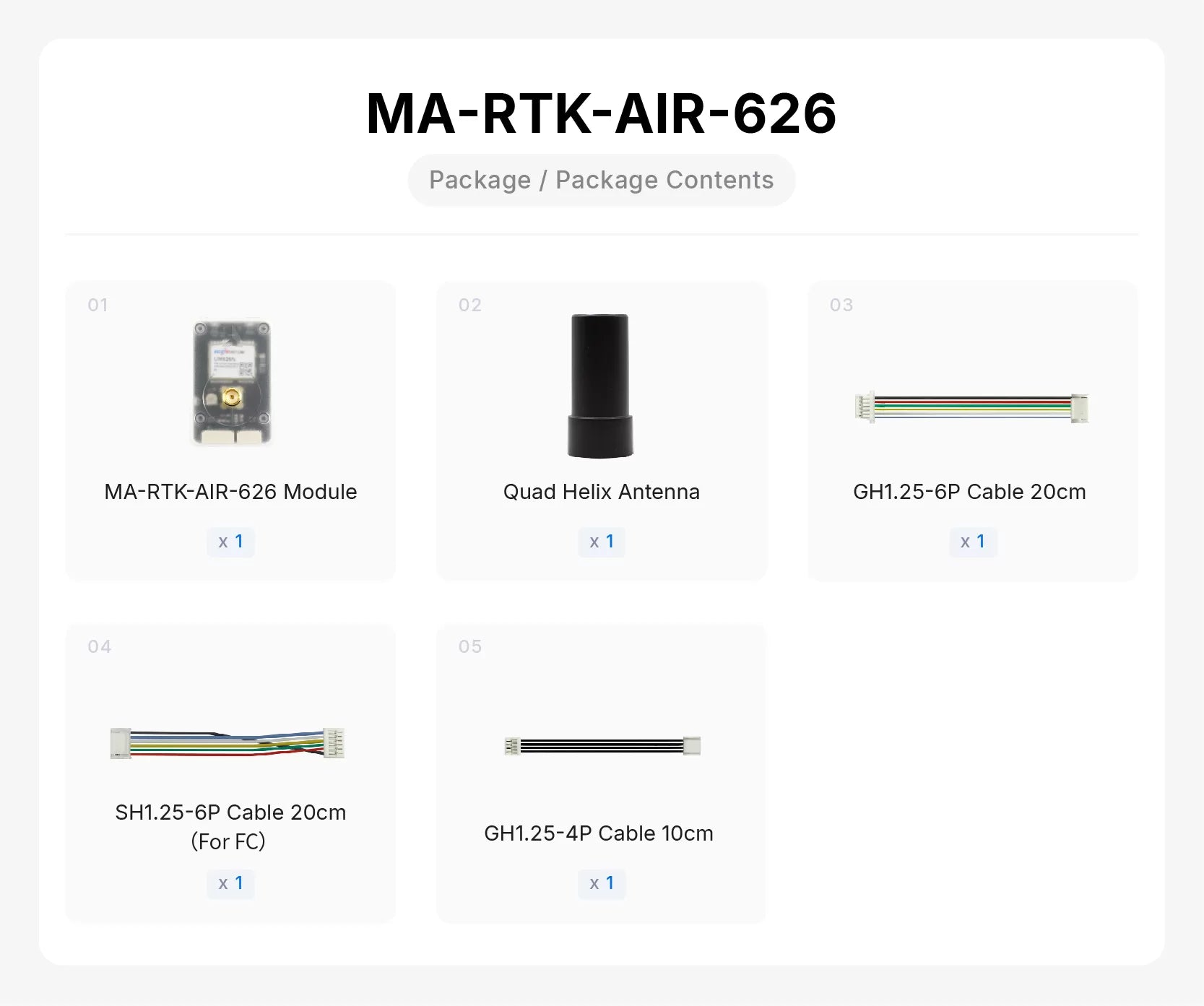

In the box

Module, quad-helix antenna, GH1.25-6P cable 20 cm, SH1.25-6P FC cable 20 cm, GH1.25-4P cable 10 cm.

💡 Buying for a light show or swarm fleet?

Volume pricing for 10+ modules is available. Contact info@robofusion.net with your fleet size for a quote. To get started with one box, see the MicoAir RTK Complete System Bundle (base station + rover + radio pair from $449).

Complete the system

Pair with the MicoAir MA-RTK-BASE station kit (one base serves the whole fleet) and an LR900-F telemetry radio per aircraft for laptop-free RTCM broadcast. PX4 or dual-antenna heading needed? Choose the MA-RTK-AIR-982 instead.
